Piper 6XT - Page 397

THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 27
Jun 1/03
2H3
24-30-00

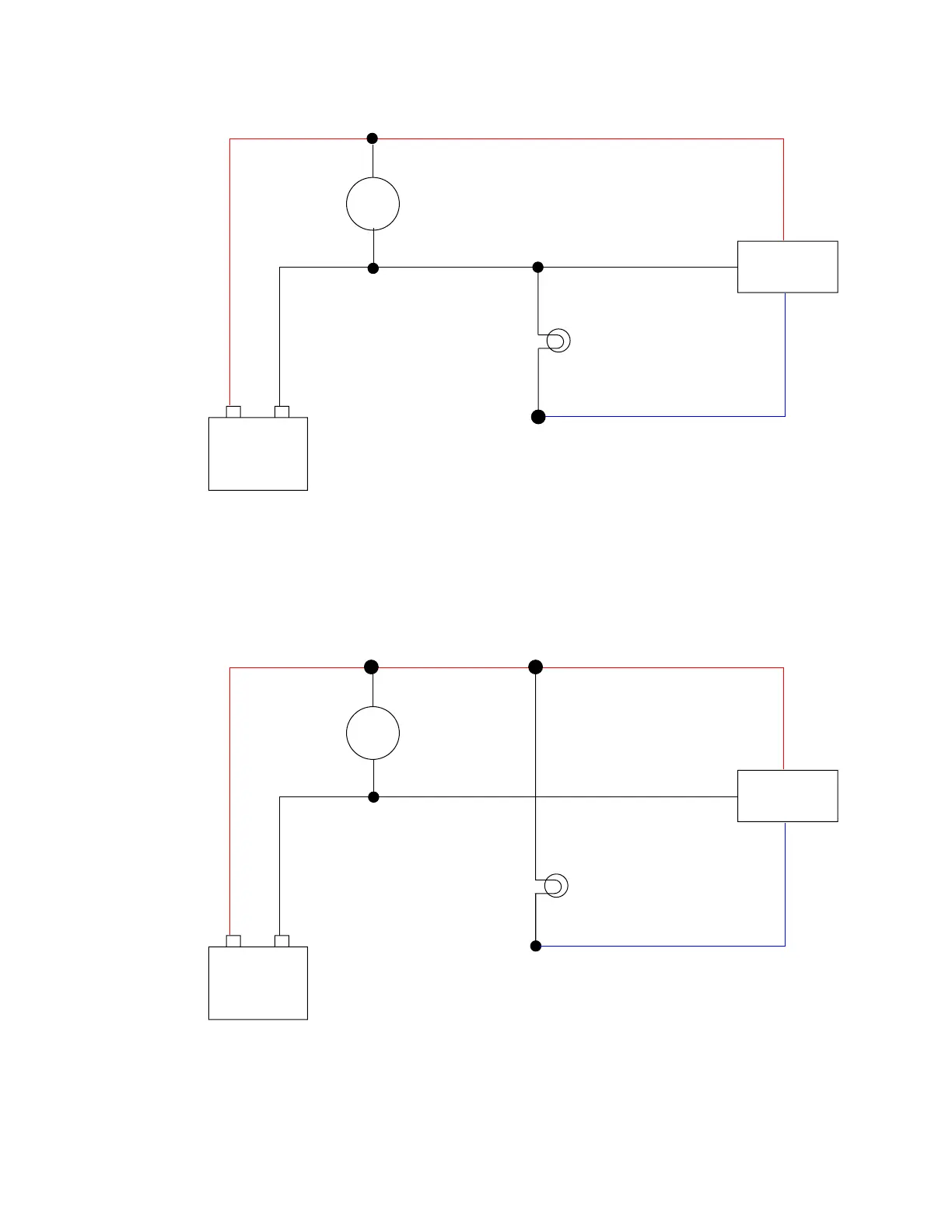

Voltage Regulator Check
Figure 23
Overvoltage Relay Check
Figure 24
RED
VOLTAGE
REGULATOR
BLK
A
+
_
+
_
28 VDC
BULB
BLUE
VOLTMETER
0 - 35 VDC
VARIABLE
POWER SUPPLY
B
RED
VOLTAGE
REGULATOR
BLK
A
+
_
+
_
B
BLUE
VARIABLE
POWER SUPPLY
28 VDC
BULB
VOLTMETER
0 - 35 VDC
