THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 3
Feb 19/04
3H17
34-10-00
PITOT LINE
STATIC LINE
TO ENCODER
AUTOPILOT
ALTITUDE
(PRESSURE)
TRANSDUCER
(REF.)
ALTIMETER (REF.)
AIRSPEED
INDICATOR (REF.)
PRIMARY FLIGHT DISPLAY (PFD) (REF.)
85462 N+
OPTIONAL AVIDYNE ENTEGRA INSTALLATION

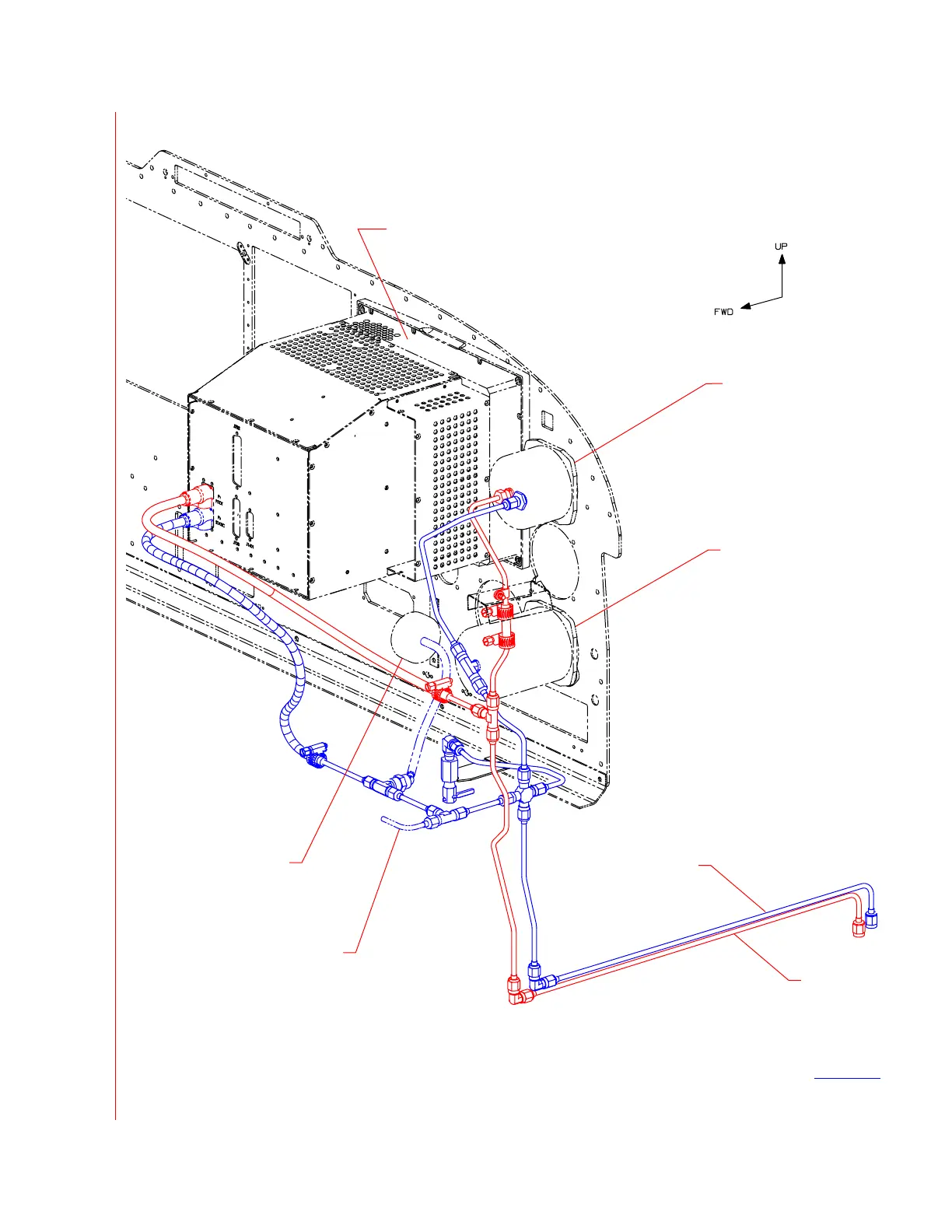

Pitot / Static System Installation
Figure 1 (Sheet 2 of 2)
Effectivity
3232014 & up
3255015 & up
