THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 7
Feb 19/04
3L15
APPENDIX 2
CB2
10 AMP
D1
K17
ADI
ASI
ALT
GI
106
A/P SWITCH
J530
J730
J731
J733
55X
GMA
340
PFD
MFD
J732
GNS 430 #2
GNS 430 #1

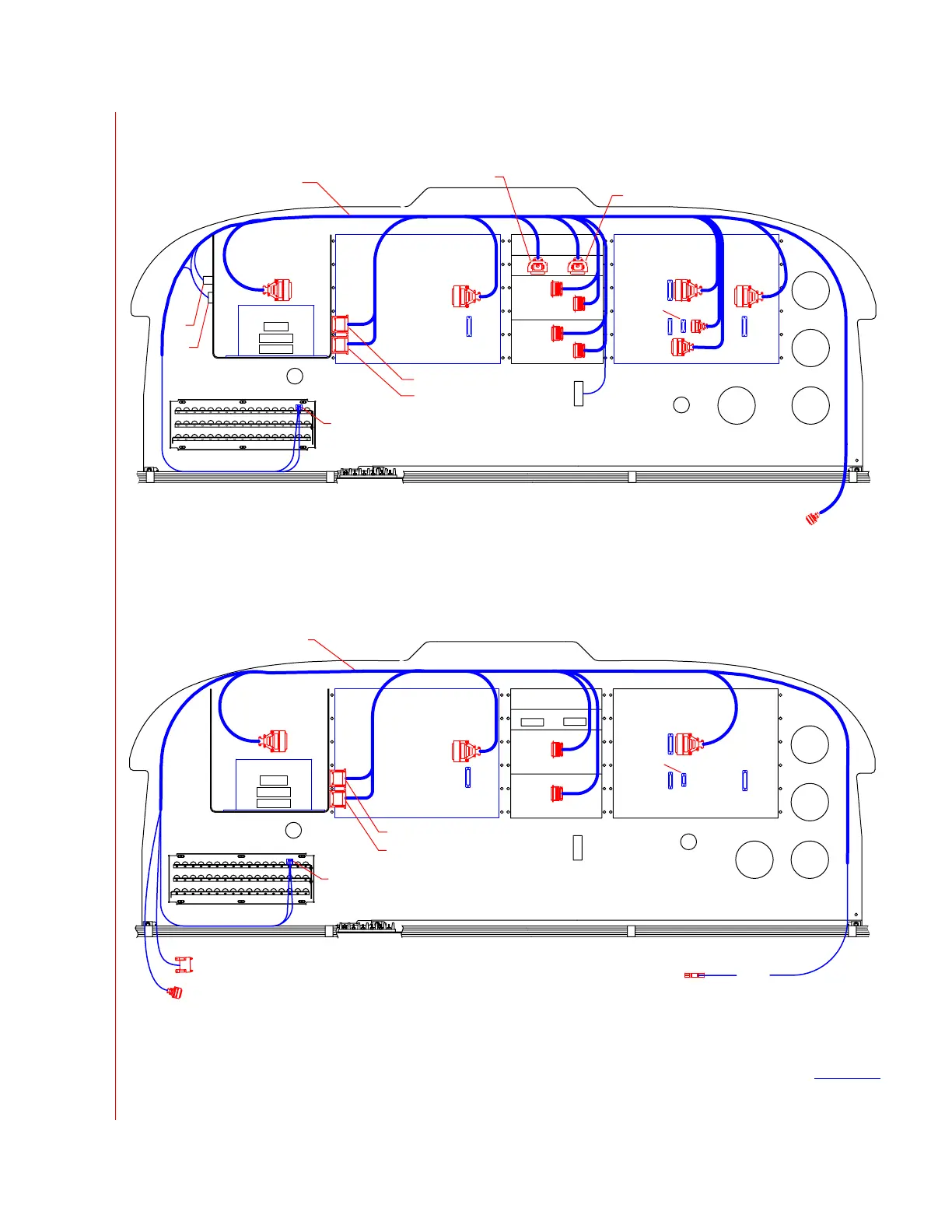

PFD WIRING HARNESS INSTALLATION
(LOOKING AFT)
DAU
J903
J902
J901
P729
P901
P43011
P43012
P43061
P43016
P732
P731
P733
P730
(TO LEFT WING ROOT
PB CONNECTOR)
P552
P551
AVIONICS SYSTEM HARNESS ASSY
P530
JB1 THRU JB6
JB7 THRU JB12
J731
AVIONICS SYSTEM HARNESS ASSY
P732
CB3
7.5 AMP
J735
(TO STORMSCOPE /
SKYWATCH PB CONNECTOR)
ADI
ASI
ALT
GI
106
A/P SWITCH
J530
GNS 430 #2
55X
GMA-340
PFD
MFD
TO GROUND BLOCK
GNS 430 #1
TO EXCEEDANCE ALERT HORN
J730
J733
J732
MFD WIRING HARNESS INSTALLATION
(LOOKING AFT)
E7S22
P902
P43011
P43012
P530
DAU
J903
J902
J901
JB1 THRU JB6
JB7 THRU JB12
Wiring Harness Installation
Figure 3 (Sheet 1 of 2)
Effectivity
3232014 & up
3255015 & up
