THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 9
Jun 1/03
4C19
39-20-00

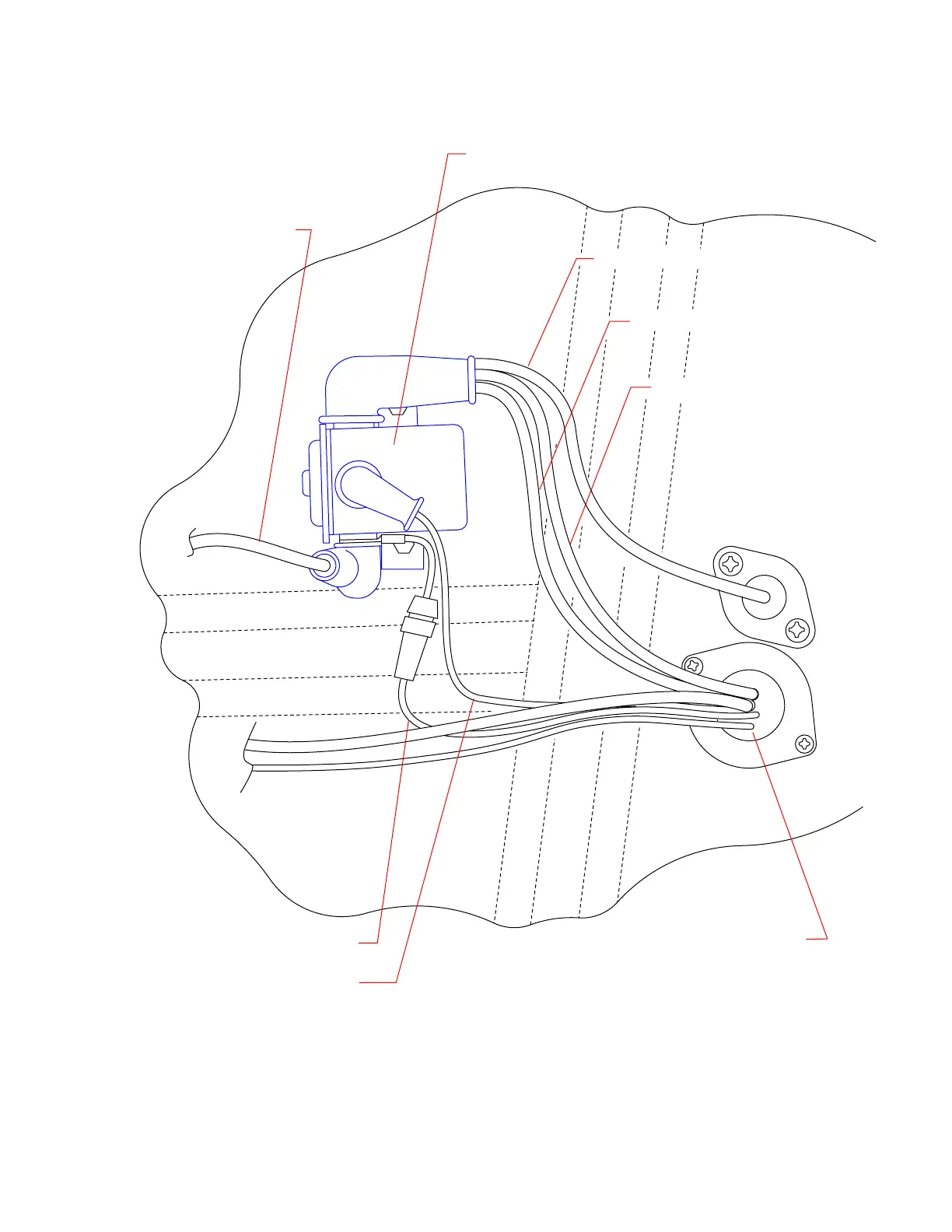

Electrical/Electronic Component Locator
Figure 1 (Sheet 8 of 8)
STARTER SOLENOID
P3C4 (TO DIODE ASSEMBLY)
P1C4 (TO MAIN BUS)
P1B4 (FROM BATTERY SHUNT)
FUSELAGE HARNESS (REF)
K2A4 TO STARTER
STE1-20 TO ANNUNCIATOR
K1G18 TO START SWITCH
ENGINE COMPARTMENT
REAR LEFT, VIEW AFT
