COMPONENT LUBRICANT FREQUENCY
1. CONDENSER HINGE AND ACTUATORS MIL-L-7870 100 HRS
2. CONDENSER DOOR ACTUATING TRANSMISSION MIL-G-23827 500 HRS
SPECIAL INSTRUCTIONS
Transmission to be 1/2 full of grease. Apply grease during assembly and lubricate transmission ball nut and screw with MIL-G-23827 grease.

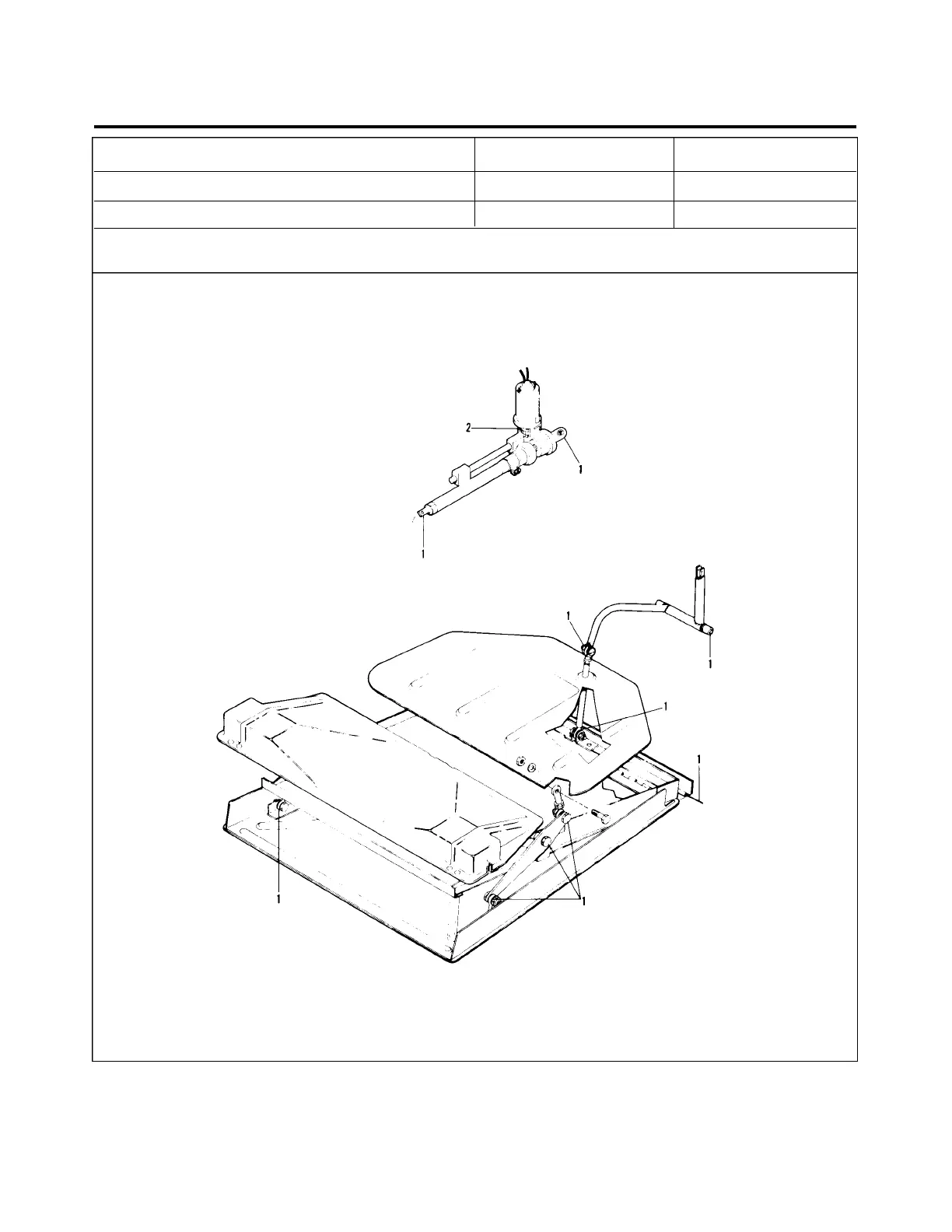

Figure 12-11. Lubrication Chart (Air Conditioning Condenser)
12-20-32
Page 12-28
December 1, 1978
1E12
PIPER AIRCRAFT
PA-28RT-201 / 201T
*MAINTENANCE MANUAL
