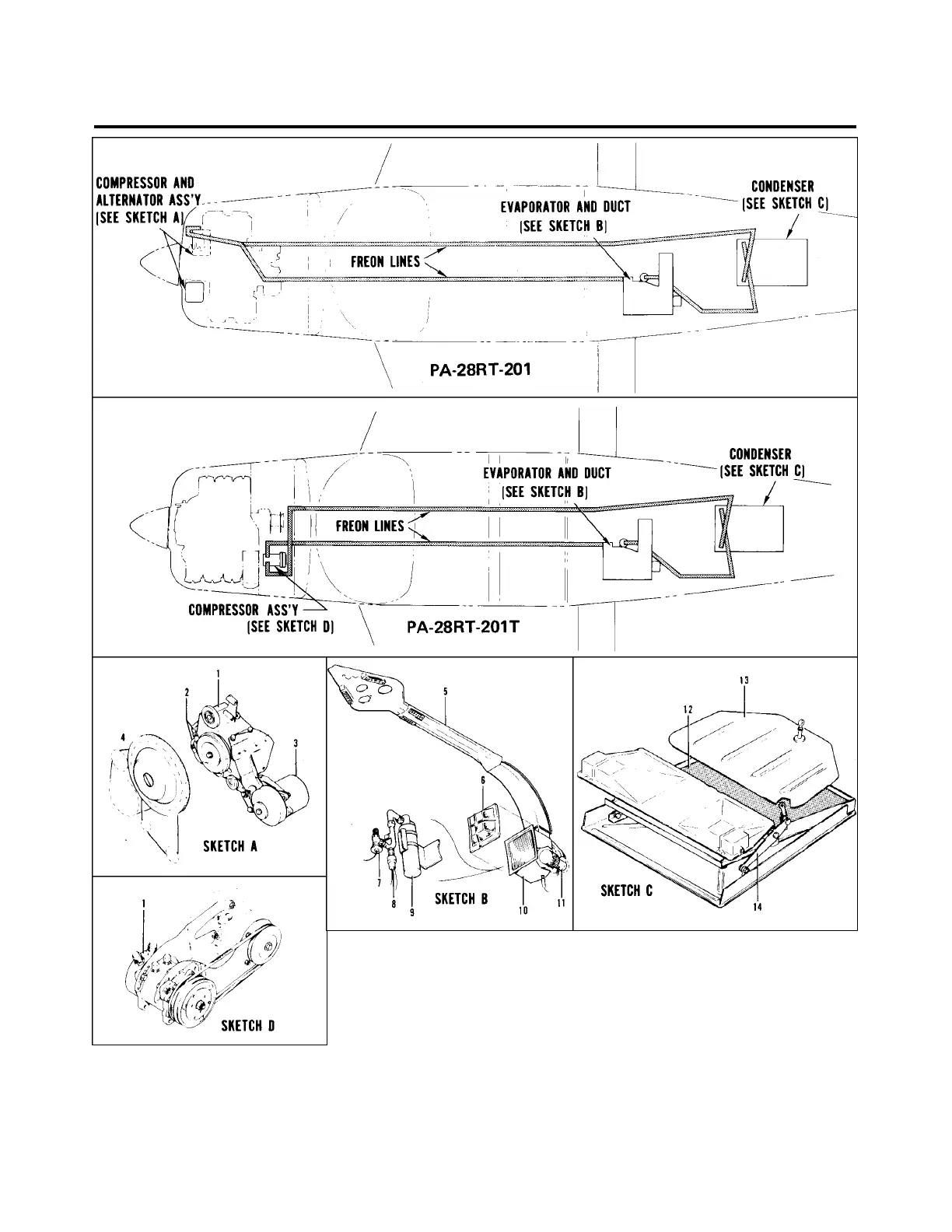

Figure 21-4. Air Conditioning System Installation
21-50-01
Page 21-12
December 1, 1978
1F11
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL
1. COMPRESSOR 8. PRESSURE SWITCH
2. FREON LINES 9. RECEIVER DEHYDRATOR
3. ALTERNATOR 10. EVAPORATOR
4. PULLEY POSITIONS 11. SLOWER MOTOR
5. DUCT ASSEMBLY 12. CONDENSER
6. EVAPORATOR FILTER AND COVER 13. COVER ASSEMBLY
7. EXPANSION VALVE 14. BELLCRANK ASSEMBLY
