SUPPLEMENT
12
PA-34-220T, SENECA
IH
SECTION 2
-
LIMITATIONS
Do
not
operate
the radar
during
refueling operations
or
in
the
vicinity
of trucks
or
containers
accommodating
flammables
or
explosives,
Do
not
allow
personnel
within 15
feet
of
area
being scanned by
antenna
when
system
is
transmitting.
SECTION
3
-
EMERGENCY
PROCEDURES
No changes
to
the
basic
Emergency Procedures
provided
by
Section 3
of
this Pilot's
Operating
Handbook
are
necessary
for
this
supplement.
SECTION
4
-
NORMAL PROCEDURES
(a)
SYSTEM CONTROLS
All
controls
used
to operate
the radar
system
are
located
on
the
indicator
front
panel. These controls
and
the
display
features
are
indexed
and
identified in Figure
4-1
and described
in
Table
4-3.

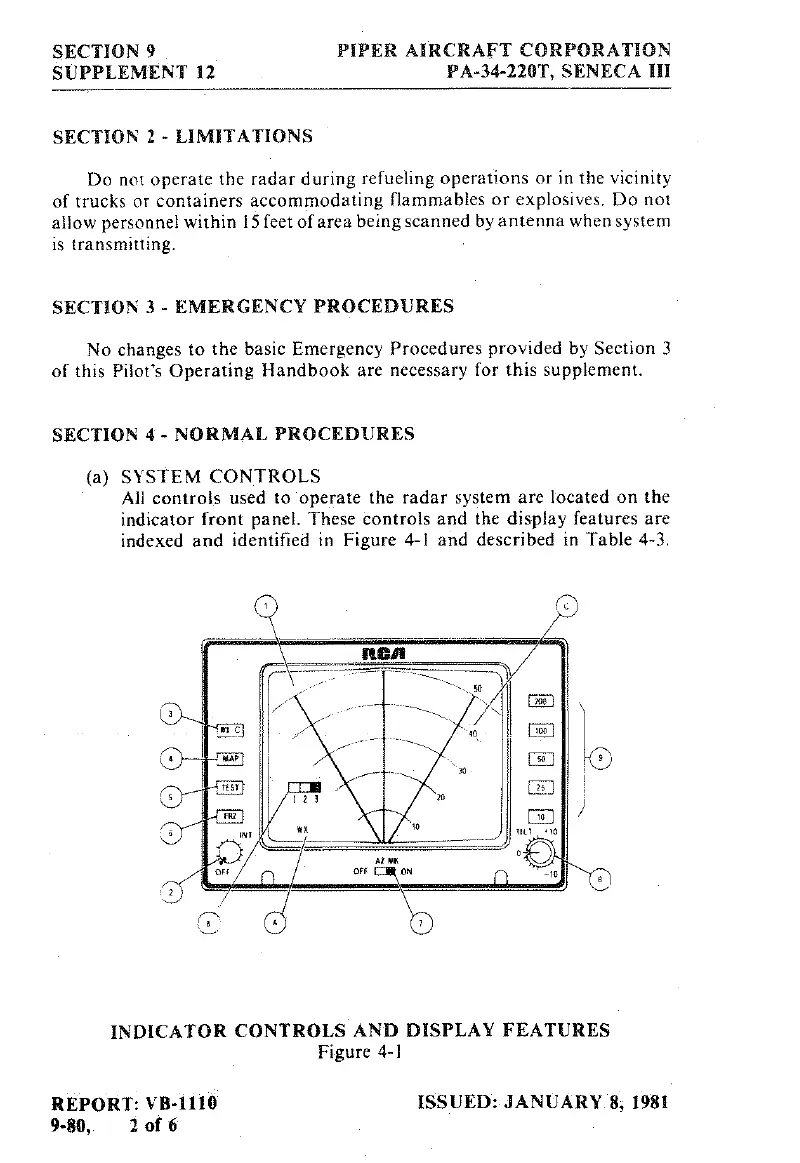

INDICATOR
CONTROLS AND
DISPLAY
FEATURES
Figure 4-1
REPORT:
VB-iilé
ISSUED:
JANUARY
8, 1981
9-80,
1
of 6
