PIPER
AIRCRAFT
CORPORATION
SECTION
9
PA-34-220T,
SENECA
IH
SUPPLEMENT 14
RADAR-160
WEATHER RADAR
SYSTEM
Range
Switch
Position
Range-Range
Mark
Readout
**TEST
.
40-10
5
S-I
10
10-2
20
20-4
40
40-10
80
80-20
I60
160-40
Wx-MAP-Wx A
Switch
Position Mode
Readout*
Wx
Wx
MAP
MAP
WxA
WxA
*When
the
HOLD pushbutton
is
initially depressed,
the
MODE
READOUT
displays
flashing HOLD.
**The
MODE
READOUT
displays TEST.

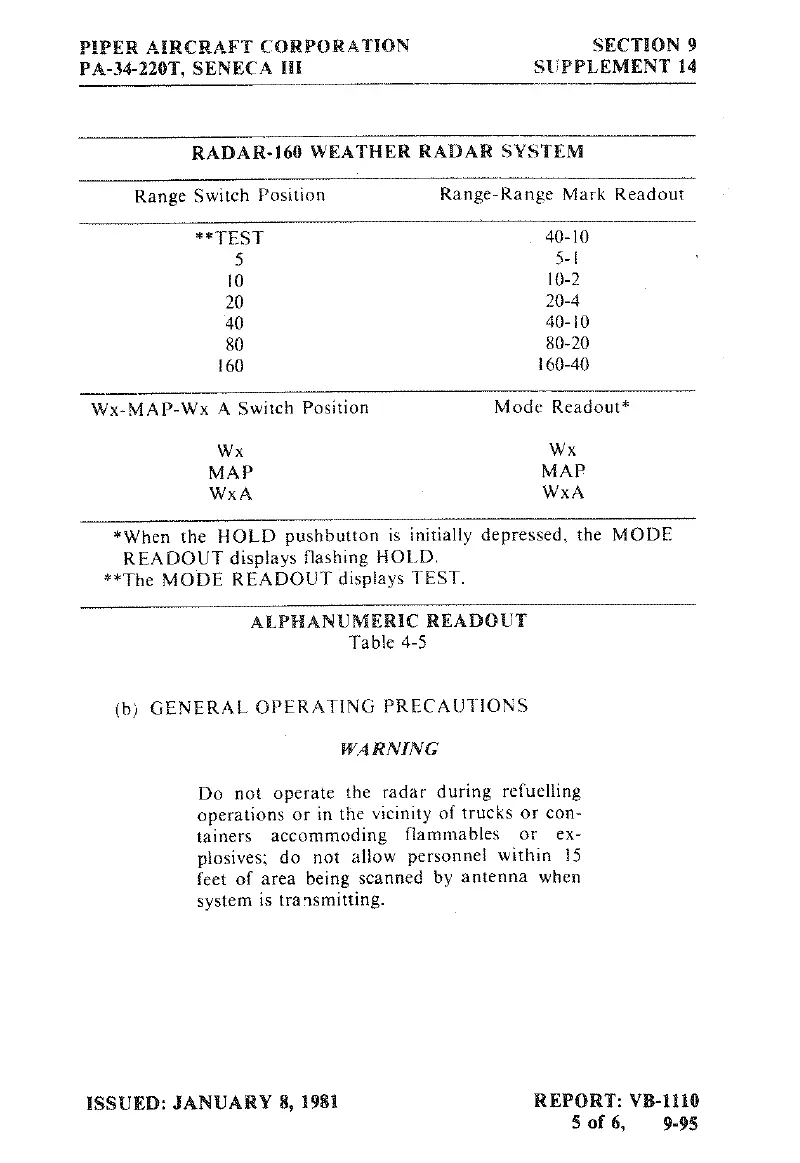

ALPHANUMERIC
READOUT
Table
4-5
(b)
GENERAL
OPERATING
PRECAUTlONS
W4RNING
Do
not
operate
the
radar
during
refuelling
operations
or
in
the
vicinity
of
trucks
or con-
tainers
accommoding
flammables
or ex-
plosives;
do
not
allow
personnel
within
15
feet
of
area
being
scanned by
antenna
when
system
is
transmitting.
ISSUED:
JANUARY 8,
1981
REPORT: VB-1110
5
of
6,
9-95
