ENGLISH
10

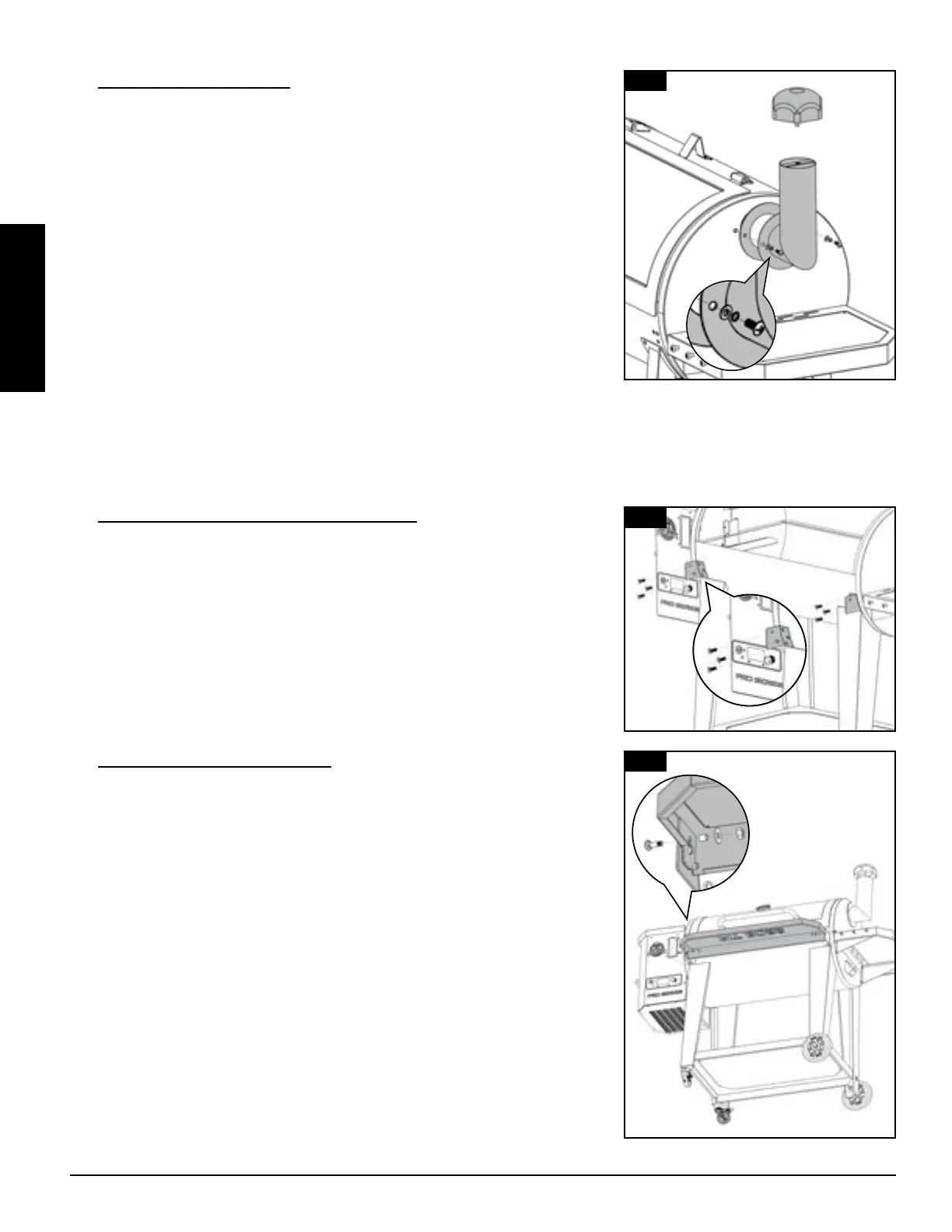

9.
Parts Required:
1 x Chimney Gasket
(#7)
1 x Chimney Cap
(#8)
1 x Chimney Stack
(#9)
2 x Screw
(#A)
2 x Locking Washer
(#C)
2 x Washer
(#B)
Installation:
• Locate the chimney opening on the side of the main barrel. From the
outside, secure the chimney and chimney gasket to the side panel
using two screws, locking washers, and washers. The screw will fasten
to the pre-mounted nut on the inside of the barrel.
• Next, secure the chimney cap onto the top of the chimney stack by
rotating the chimney cap screw into the chimney stack.
NOTE: Adjust the chimney cap to affect the airflow inside the main
grill. If cooking at low temperature, keep the cap more open. Ensure
the chimney cap allows for air to escape.
10.
Parts Required:
2 x Front Shelf Bracket
(#21)
6 x Screw
(#A)
Installation:
• Attach one front shelf bracket to the front of the grill barrel by using
three screws. Install each screw halfway, then tighten completely
when all three screws are mounted and aligned properly.
• Repeat the same installation for the other front shelf bracket.
11.
Parts Required:
1 x Front Shelf
(#22)
2 x Washer
(#B)
2 x Screw
(#H)
2 x Nut
(#I)
2 x Bushing
(#J)
Installation:
• From underneath, insert the screw (from the outside) into the front
shelf bracket and the front shelf, then add the bushing onto the screw,
the washer, then the nut.
• Repeat installation for the other side of the front shelf.
NOTE: When installed correctly, the front shelf can be raised (for use)
and lowered (for storage) with ease.
IMPORTANT: Avoid using the shelves to move or lift the grill. The
weight of the unit will cause the shelves to break, which is not
covered by warranty.
11
22
10
9
8
9
7
211
212
