ENGLISH
26
1
2
4
3
11
12
13
15
17
18
20
21
22
23
24
25
19
16
8
6
7
10
9
5

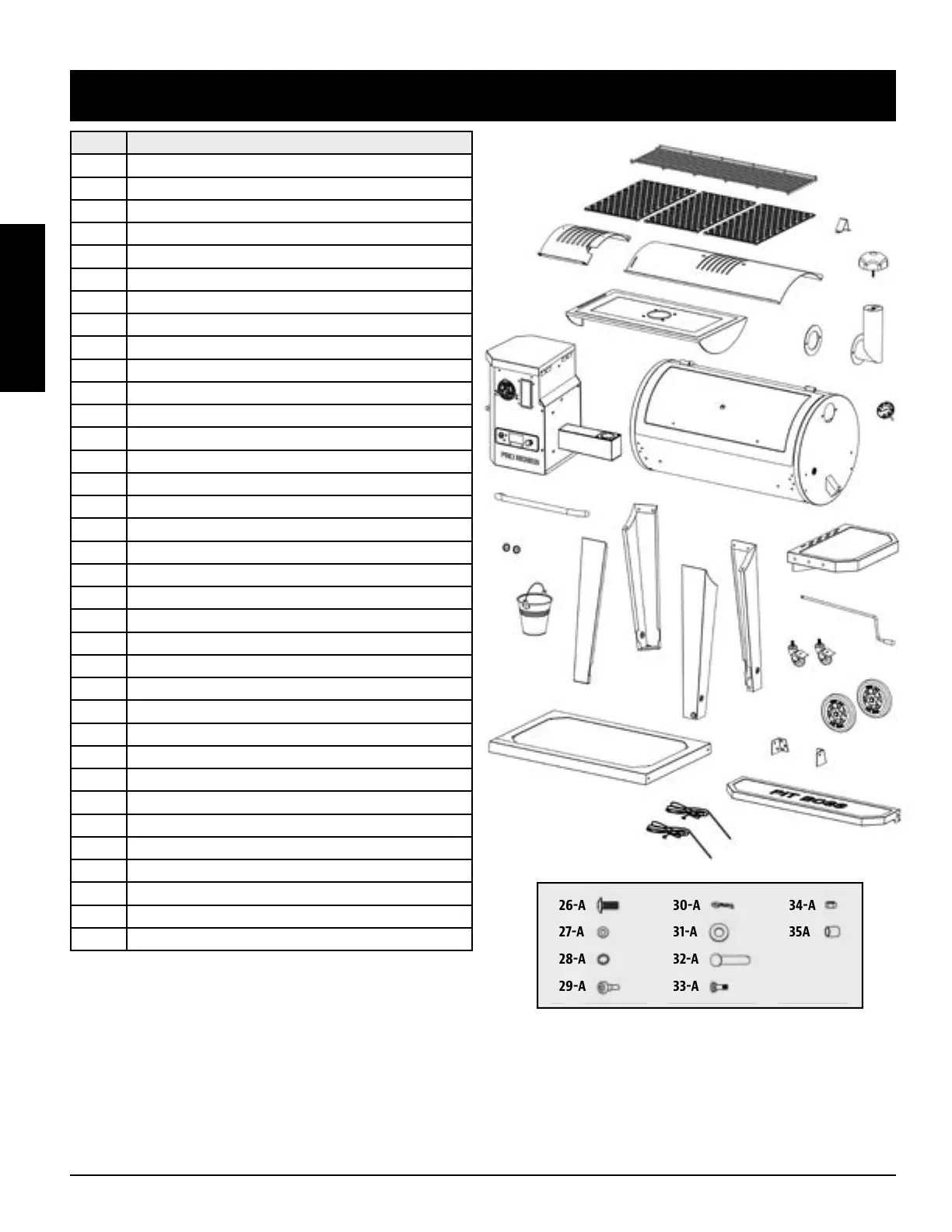

Part# Description
1- Porcelain-Coated Steel Upper Cooking Rack (x1)
2-
Porcelain-Coated Match Pattern Cast-Iron Cooking Grid (x3)
3- Lid Stopper (x1)
4- Flame Broiler Slider (x1)
5- Flame Broiler Main Plate (x1)
6- Diffuser Plate (x1)
7- Chimney Gasket (x1)
8- Chimney Cap (x1)
9- Chimney Stack (x1)
10- Hopper Assembly (x1)
11- Main Barrel (x1)
12- Thermometer (x1)
13- Side Shelf (x1)
14- Lid Handle (x1)
15- Lid Handle Bezel (x2)
16- Grease Bucket (x1)
17- Support Leg for Caster (x2)
18- Support Leg (x2)
19- Flame Broiler Control Lever (x1)
20- Locking Caster Wheel (x2)
21- Wheel (x2)
22- Front Shelf Bracket (x2)
23- Front Shelf (x1)
24- Bottom Shelf (x1)
25- Meat Probe (x2)
26- Screw (x28)
27- Washer (x24)
28- Locking Washer (x22)
29- Tool Hook (x3)
30- Wheel Cotter Pin (x2)
31- Wheel Washer (x2)
32- Wheel Axle Pin (x2)
33- Screw (x2)
34- Nut (x2)
35- Bushing (x2)
NOTE: Due to ongoing product development, parts are subject to change without notice.
14
221
171
181
222
172
182
28 32
29 33
27 31 35
26 30 34
To Next Page
