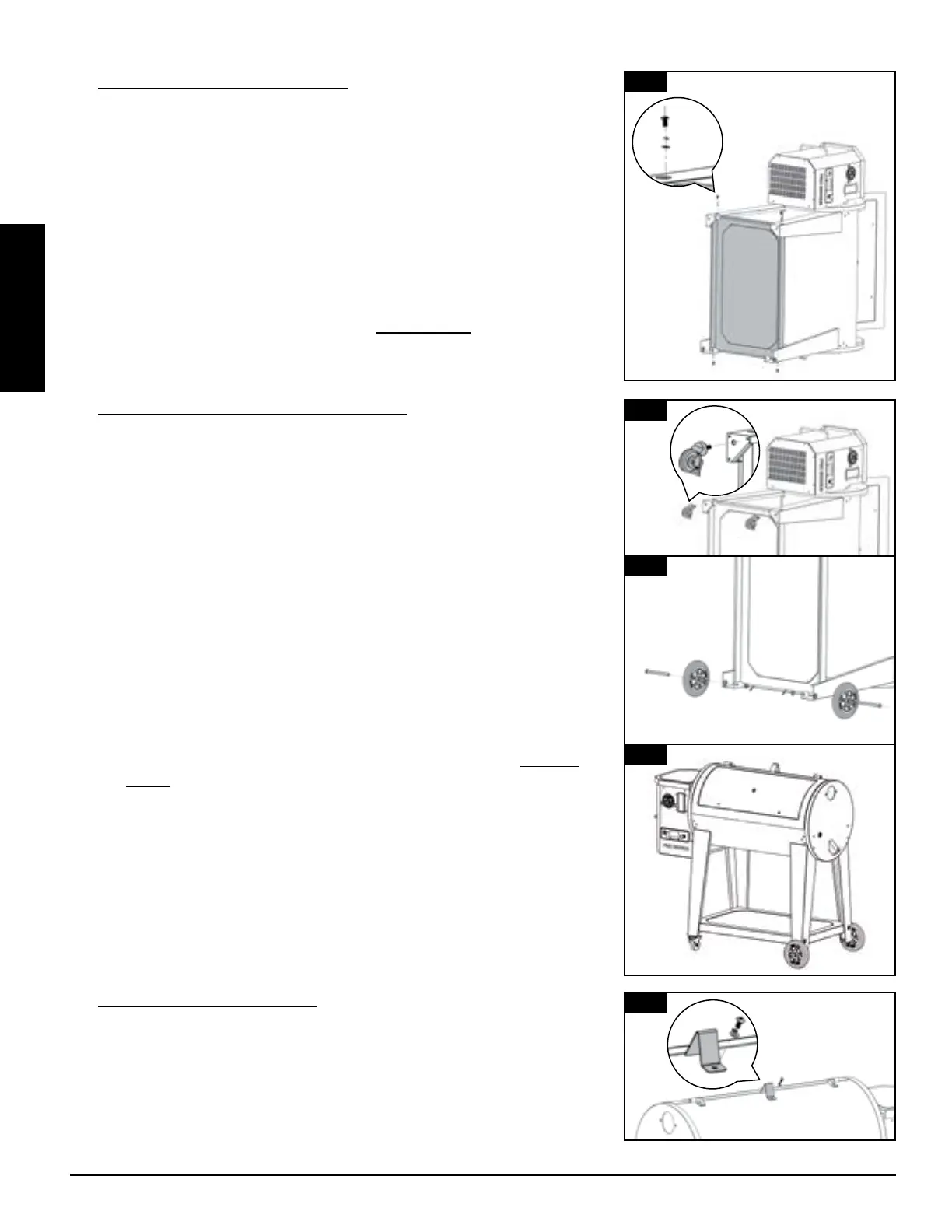

2.
Parts Required:
1 x Bottom Shelf
(#23)
4 x Screw
(#A)
4 x Locking Washer
(#C)
4 x Washer
(#B)
Installation:
• From underneath, secure the bottom shelf to each support leg using a
screw, locking washer, and washer. Ensure the flat surface of the shelf
is facing up towards the grill barrel.
NOTE: Fasten screws of the bottom shelf only half-way all screws have
been installed. Once all screws are installed, then tighten securely into
the support legs.
3.
Parts Required:
2 x Locking Caster Wheel
(#19)
2 x Wheel
(#20)
2 x Wheel Axle Pin
(#G)
2 x Wheel Washer
(#F)
2 x Wheel Cotter Pin
(#E)
Installation:
• Insert each locking caster wheel into the bottom of each support leg
by hand-tightening into the hole. It will secure into the self-clinching
nut. Ensure the locking caster wheel is inserted completely by ensuring
it cannot rotate any further. Note illustration 3.
• Attach the large wheel to the support leg by inserting the wheel axle pin
through the wheel, support leg hole, then secure using the wheel cotter
pin. Repeat installation for the other wheel on same side. Note 3.
• Once the wheels are secure, lock the caster wheels, then using a second
person, carefully lift the grill into an upright position. Note 3.
IMPORTANT: Re-tighten the support leg screws to ensure they are
completely secure after positioning the grill upright.
4
3
23
2
3
3
20
20
3
19
19
4.
Parts Required:
1 x Lid Stopper
(#3)
Installation:
• Secure the lid stopper onto the top of the main barrel using the pre-
installed screw on the top of the main barrel.
