ENGLISH
25
1
2
4
3
10
11
12
15
14
17
18
20
21
22
23
24
25
26
27
28
29
30
19
16
8
6
7
9
5

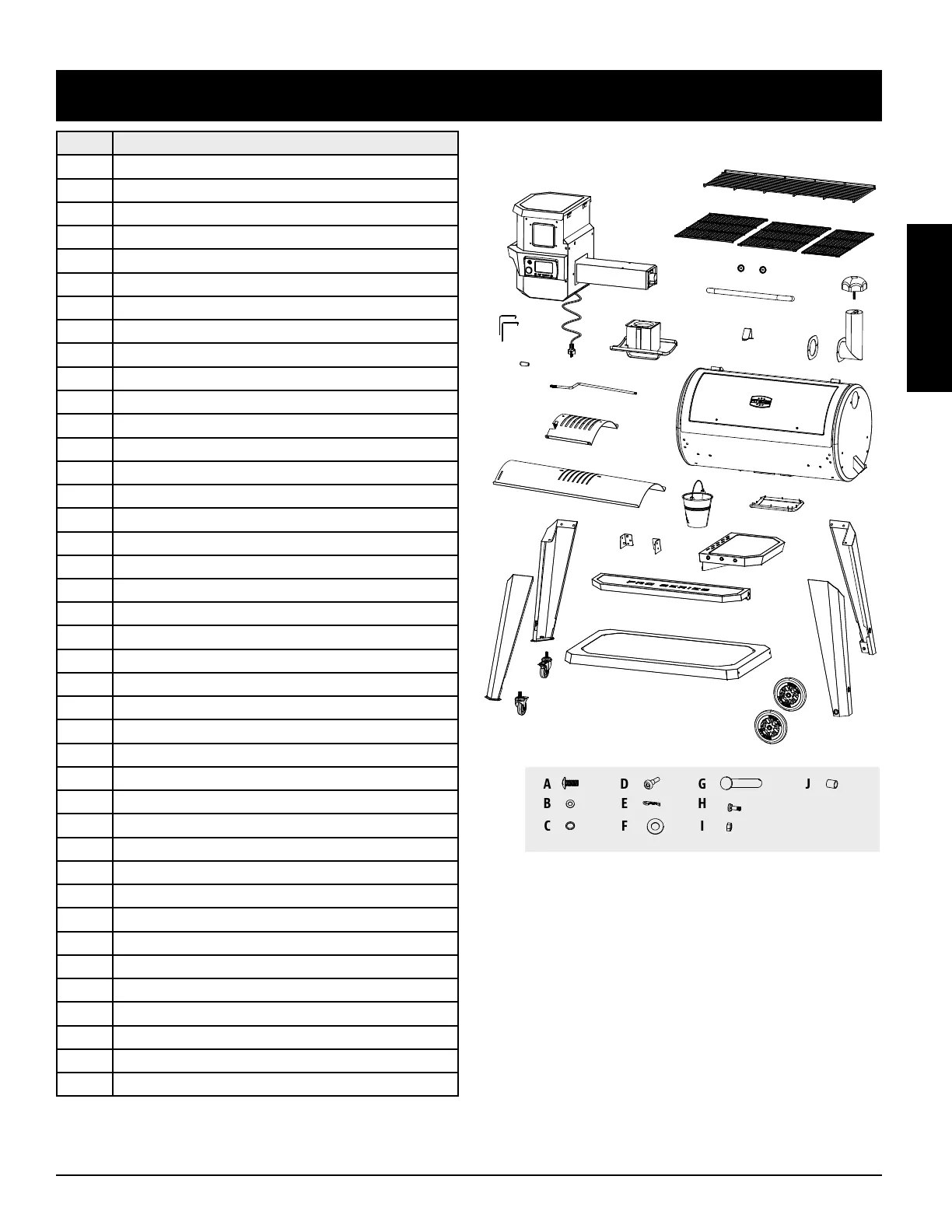

Part# Description
1 Porcelain-Coated Steel Upper Cooking Grate (x1)
2
Porcelain-Coated Match Pattern Cast-Iron Cooking Grate - A (x2)
3
Porcelain-Coated Match Pattern Cast-Iron Cooking Grate - B (x1)
4 Lid Stopper (x1)
5 Lid Handle Bezel (x2)
6 Lid Handle (x1)
7 Chimney Gasket (x1)
8 Chimney Stack (x1)
9 Chimney Cap (x1)
10 Hopper Assembly (x1)
11 Main Barrel (x1)
12 Flame Broiler™ Slider (x1)
13 Flame Broiler™ Adjusting Bar (x1)
14 Flame Broiler™ Adjusting Bar Handle (x1)
15 Flame Broiler™ Main Plate (x1)
16 Ash Box Gasket (x1)
17 Ash Box (x1)
18 Left Support Leg - Front (x1)
19 Left Support Leg - Back (x1)
20 Locking Caster Wheels (x2)
21 Right Support Leg - Front (x1)
22 Right Support Leg - Back (x1)
23 Wheel (x2)
24 Bottom Shelf (x1)
25 Front Shelf (x1)
26 Front Shelf Bracket / Left (x1)
27 Front Shelf Bracket / Right (x1)
28 Grease Bucket (x1)
29 Side Shelf (x1)
30 Meat Probe (x2)
A Screw (x28)
B Washer (x24)
C Locking Washer (x22)
D Tool Hook (x3)
E Wheel Cotter Pin (x2)
F Wheel Washer (x2)
G Wheel Axle Pin (x2)
H Screw (x2)
I Nut (x2)
J Bushing (x2)
NOTE: Due to ongoing product development, parts are subject to change without notice.
13
