Pit Boss PB1150PS3 - Parts & Specs

ENGLISH
6
  
1
2
4
3
10
11
12
15
14
17
18
20
21
22
23
24
25
26
27
   
  
  
19
16
8
6
7
9
5

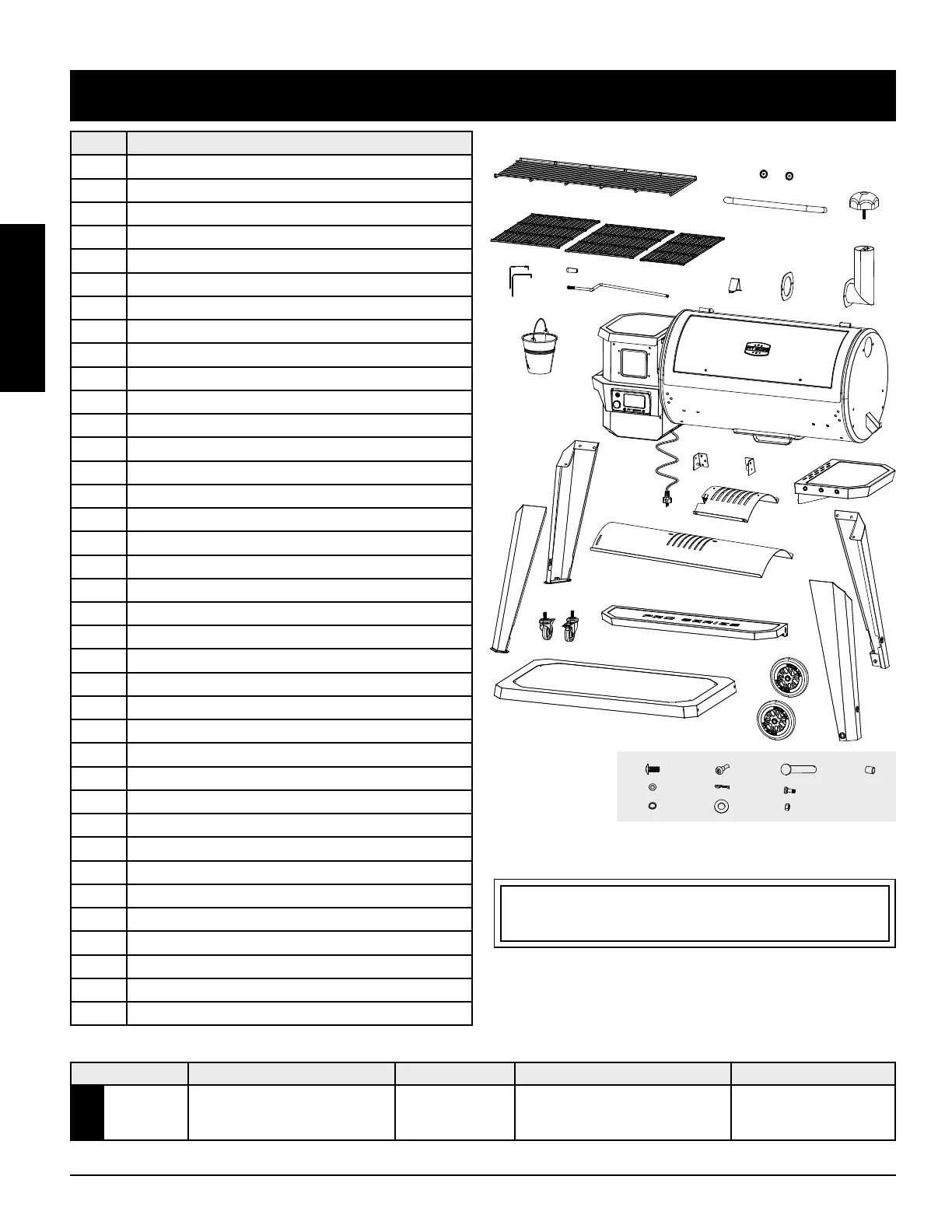

Part# Description
1 Porcelain-Coated Steel Upper Cooking Grate (x1)
2 Porcelain-Coated Cast-Iron Cooking Grate - A (x2)
3 Porcelain-Coated Cast-Iron Cooking Grate - B (x1)
4 Lid Stopper (x1)
5 Lid Handle Bezel (x2)
6 Lid Handle (x1)
7 Chimney Gasket (x1)
8 Chimney Stack (x1)
9 Chimney Cap (x1)
10 Main Barrel / Hopper Assembly (x1)
11 Flame Broiler Slider (x1)
12 Flame Broiler™ Adjusting Bar (x1)
13 Flame Broiler™ Adjusting Bar Handle (x1)
14 Flame Broiler™ Main Plate (x1)
15 Left Support Leg - Front (x1)
16 Left Support Leg - Back (x1)
17 Locking Caster Wheels (x2)
18 Right Support Leg - Front (x1)
19 Right Support Leg - Back (x1)
20 Wheel (x2)
21 Bottom Shelf (x1)
22 Front Shelf (x1)
23 Front Shelf Bracket / Left (x1)
24 Front Shelf Bracket / Right (x1)
25 Grease Bucket (x1)
26 Side Shelf (x1)
27 Meat Probe (x2)
A Screw (x28)
B Washer (x24)
C Locking Washer (x22)
D Tool Hook (x3)
E Wheel Cotter Pin (x2)
F Wheel Washer (x2)
G Wheel Axle Pin (x2)
H Screw (x2)
I Nut (x2)
J Bushing (x2)
MODEL ASSEMBLED (WxHxD) WEIGHT COOKING AREA TEMPERATURE RANGE

11503
1,587.5  x 1,334.0  x 813.5 
62.50 . x 52.52 . x 32.03 .
83.6  / 184.3 
  4,587.08  / 711.0 
   2,866.44  / 444.3 
  7,453.52  / 1,155.3 
82260° / 180500°
13
NOTE: Due to ongoing product development, parts are subject to change without notice. Contact
Customer Care if parts are missing when assembling the unit.
   
110120, 60z, 250, 3  
