2 • Meet the Inserting System
The Feeder Tower is a two-sided Tray holder/material feeder that stands at
one end of the unit. Unlocking a latch on the left side of the Tower opens it to
expose Feeder Exit and Tower Transport Rollers. This makes it easy to ac-
cess media that may stop as it exits the Tower. Depending on the Configura-
tion, the Tower accepts two or four Feeder Trays.
Feeder Tower

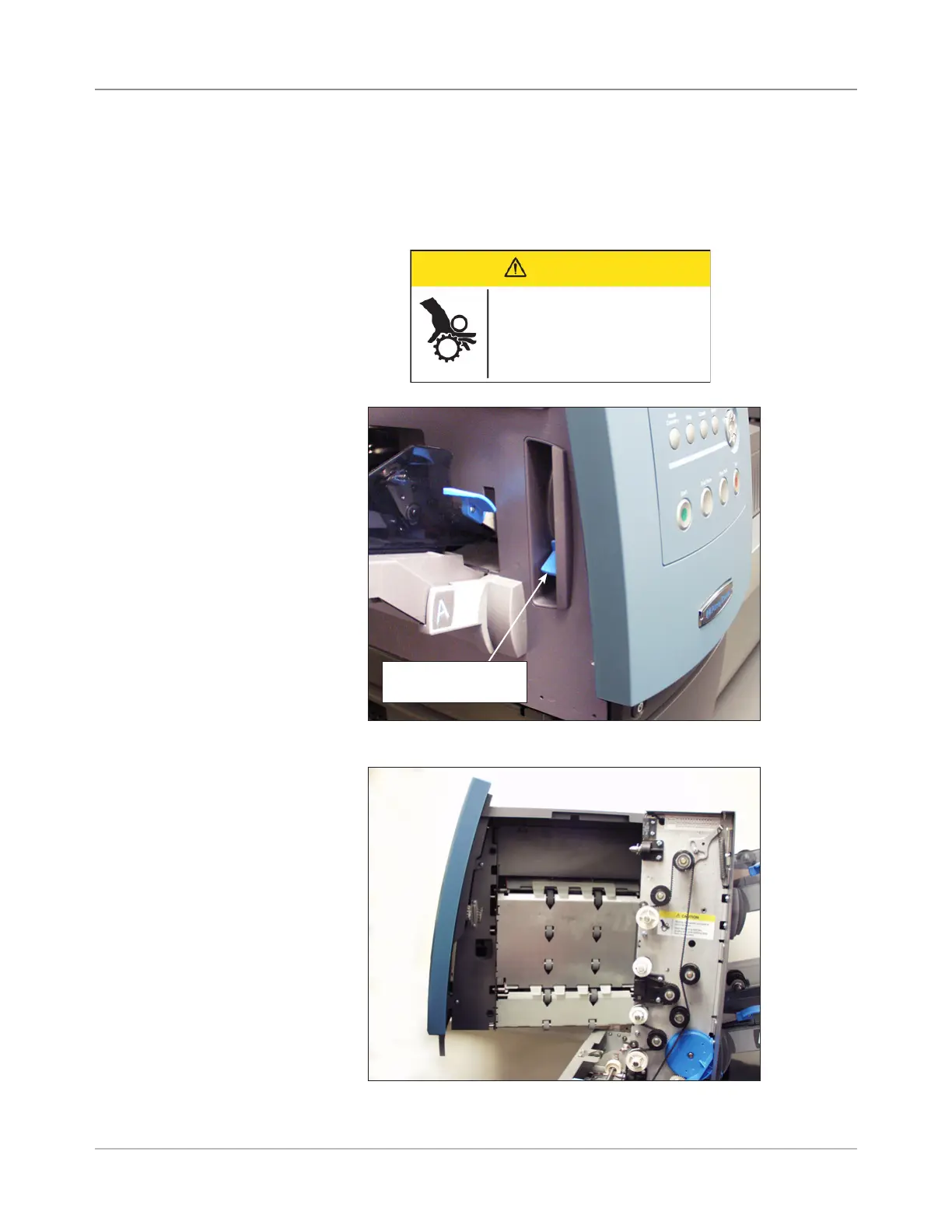

Figure 2.2.2: Two-sided Feeder Tower: Open for easy
access to Feed Rollers.
Figure 2.2.1: Latch Opens Feeder Tower.
Push latch up to
open Tower cover
CAUTION
Moving mechanism can result in
personal injury.
Keep hands, long hair, ties,
jewelry and loose clothing away
from moving parts.
