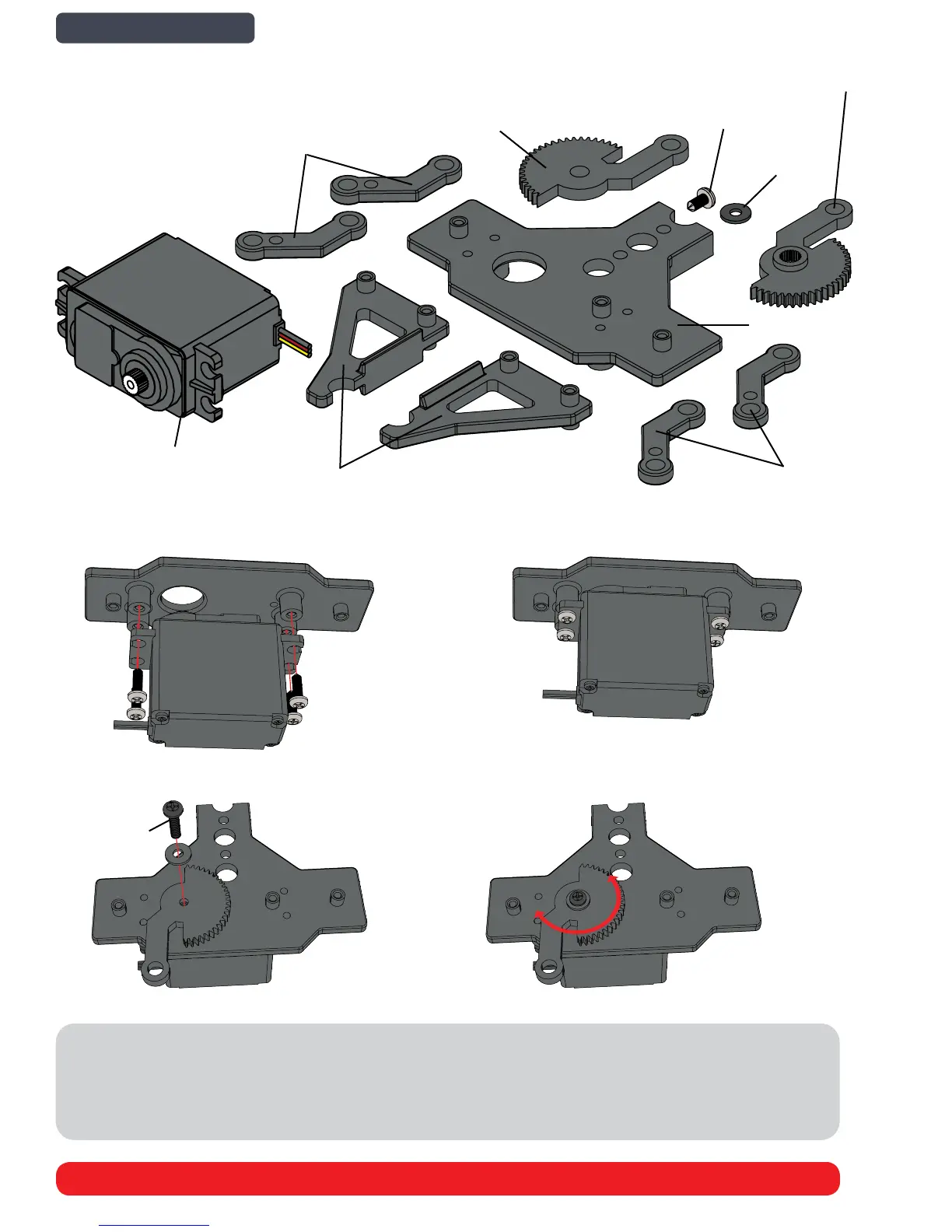

Gripper Assembly
Step 1 Step 2
Step 3 Step 4
Servo Horn
Screw
Gripper Pivot Arm
Gripper Pivot Arm
Right Gripper
Gear Arm
Left Gripper
Gear Arm
Gripper Plate
Gripper Pincer
Standard Servo
12x
Pivot Washer
11x
Self-Tapping
Screw
TIP: Before attaching the Left Gripper Gear Arm, you must make sure the servo is in the neutral position. Please
make sure the when the gripper gear arm is positioned as pictured, it can rotate both left and right.
22 Subassembly Construction Instructions
