Set Up and Test the IR Sensor (continued)

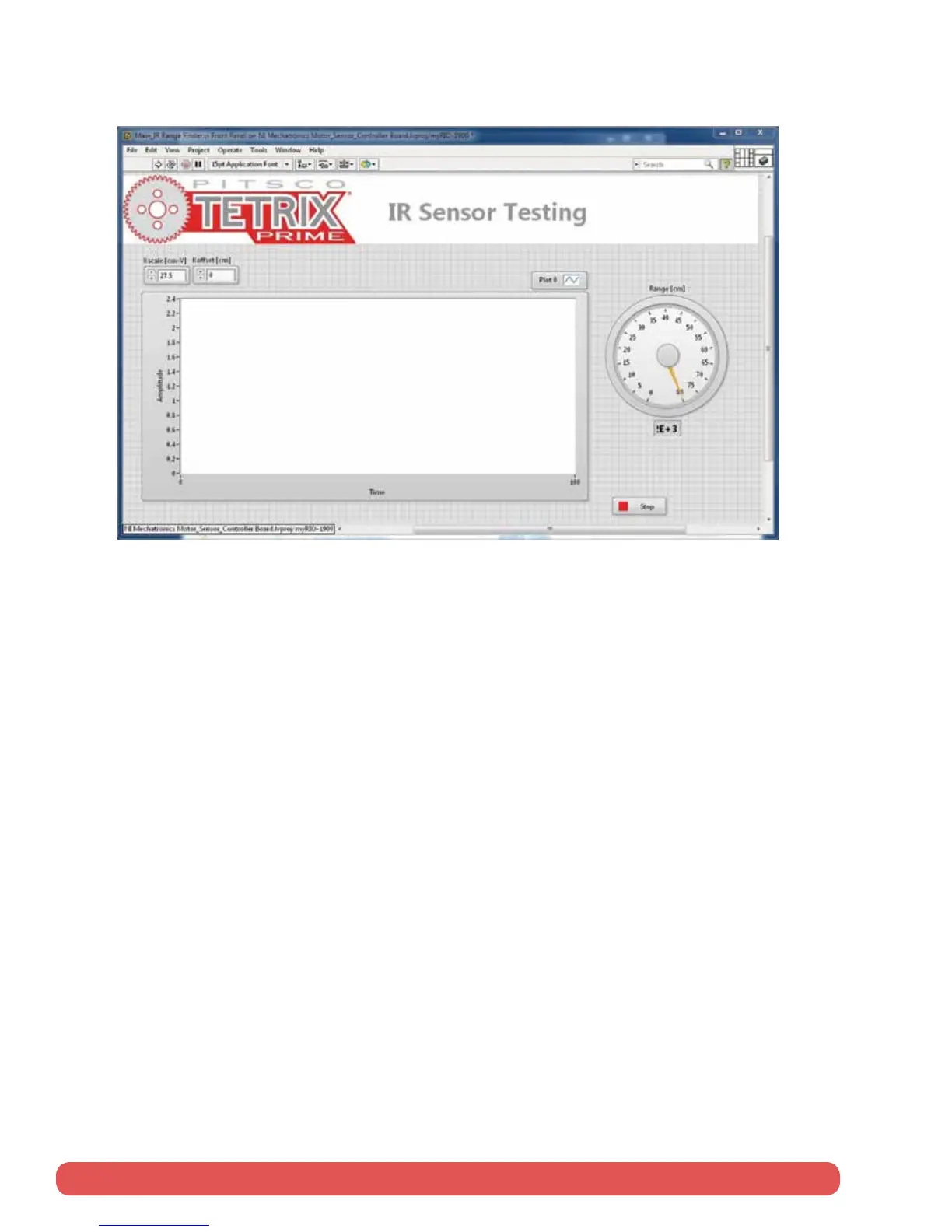

Step 4: Run the VI by pressing the arrow in the left hand corner. Place your hand about 10 inches away from the sensor and
move it back and forth. Confirm that the voltage decreases as your hand moves away from the sensor and that it increases
as your hand moves closer. Stop the VI using the stop button, and close the VI.
