9 DESCRIPTION OF THE MAIN PARTS

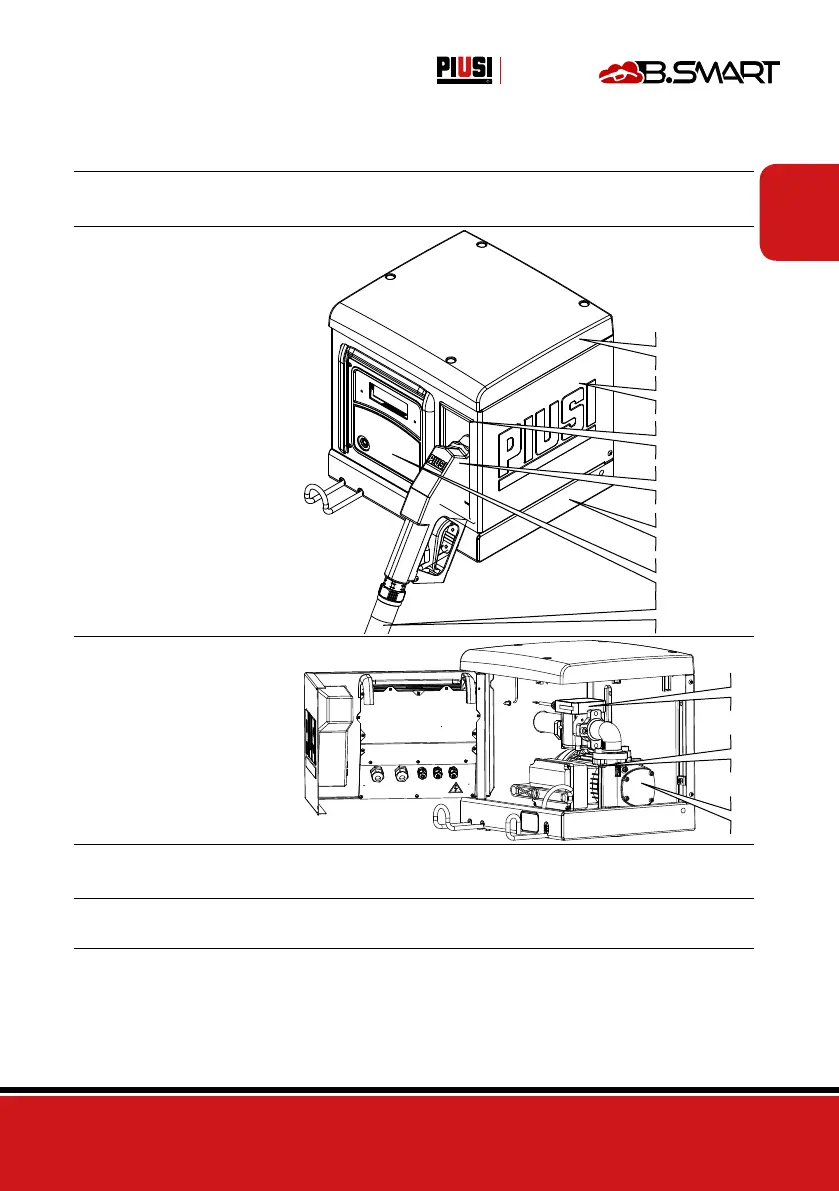

9.1 CASING AND PUMPING UNIT
The CUBE B.SMART dispenser are designed for the transfer of diesel fuel for non-commercial
use. Featuring maximum safety and ease of use, CUBE dispensers are reliable, high-performance
equipment; they are installed quickly and are ready for use. Equipment and characteristics:
1 Self-priming rotary vane pump
with built-in by-pass valve.
2 Motor with IP55 protection
degree and thermal protection,
230 V AC single phase.
3 Four metres of antistatic rubber
hose for fuels.
4 Automatic dispensing nozzle with
ON/OFF switch integrated in the
nozzle support.
5 Steel casing with anti-corrosion
treatment and finishing paint.
6 Dispensing system
7 Flow meter
INSPECTION
PANEL
ROOF
NOZZLE
HOLDER
4
5
6
3
Unit with self-priming vane electric
pump, equipped with by-pass
valve. This valve allows operation
for short periods even with the
dispensing nozzle closed. The
motor, directly coupled to the pump
body, is asynchronous, closed type
(IP55 protection class according
to the EN 60034-5-86 norm), self-
ventilated, single-phase.
For more information, refer to the
individual component manuals.
7
2
1
9.2 PULSER FLOW METER
The Pulser K600/3 flow meter has a high-precision oval gear measuring system designed to allow
accurate fuel measurement. They consist of a sturdy die-cast aluminium structure, complete with inlet
filter and are easy to maintain and reliable. For further information, please refer to the dedicated manual.
