Installation, use and maintenance
M0546
22 /6 0

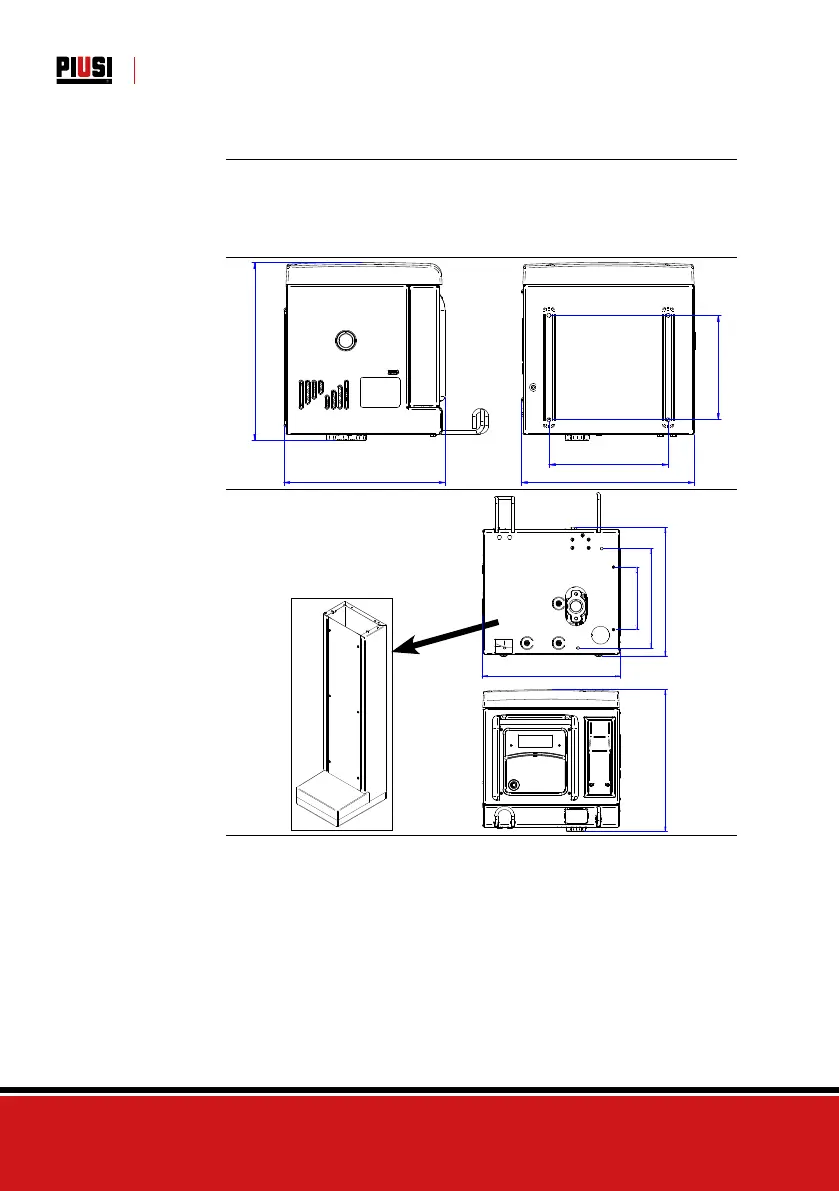

CUBE B-SMART can be installed on the wall or on a pedestal.
For wall mounting, it will be necessary to have a nr. 4 M8 screws.
For pedestal mounting, use no. 4 M6 screws.
Below are the diagrams with the center distances of the holes for a precise
installation.
The pedestal is a Piusi accessory not included in the CUBE B-SMART supply.
WALL FIXING
210
240
350
324.6
FIXING UP
PEDESTAL
optional
251
158
350
324360
