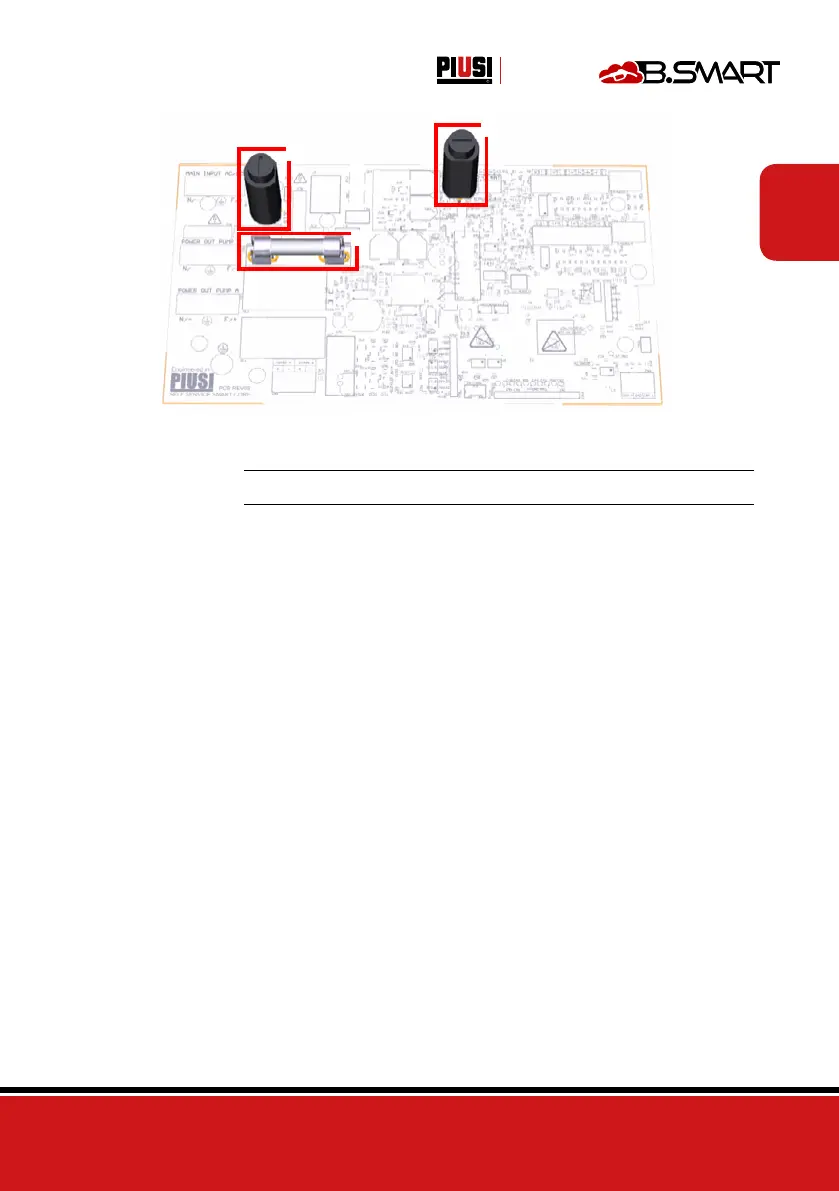

F1
F2
F3
F1 • Power supply fuse at AC power supply input 800 mA T (delayed)
F2 • Motor fuse 20 A T (delayed)
F3
• Power supply fuse at AC/DC converter output 800 mA T (delayed)
5 Tighten the screws of the metal rear cover to close the compartment of the
electronic boards and power
