Pivot SHUTTLE User Manual

www.pivotcycles.com 1.877.857.4868

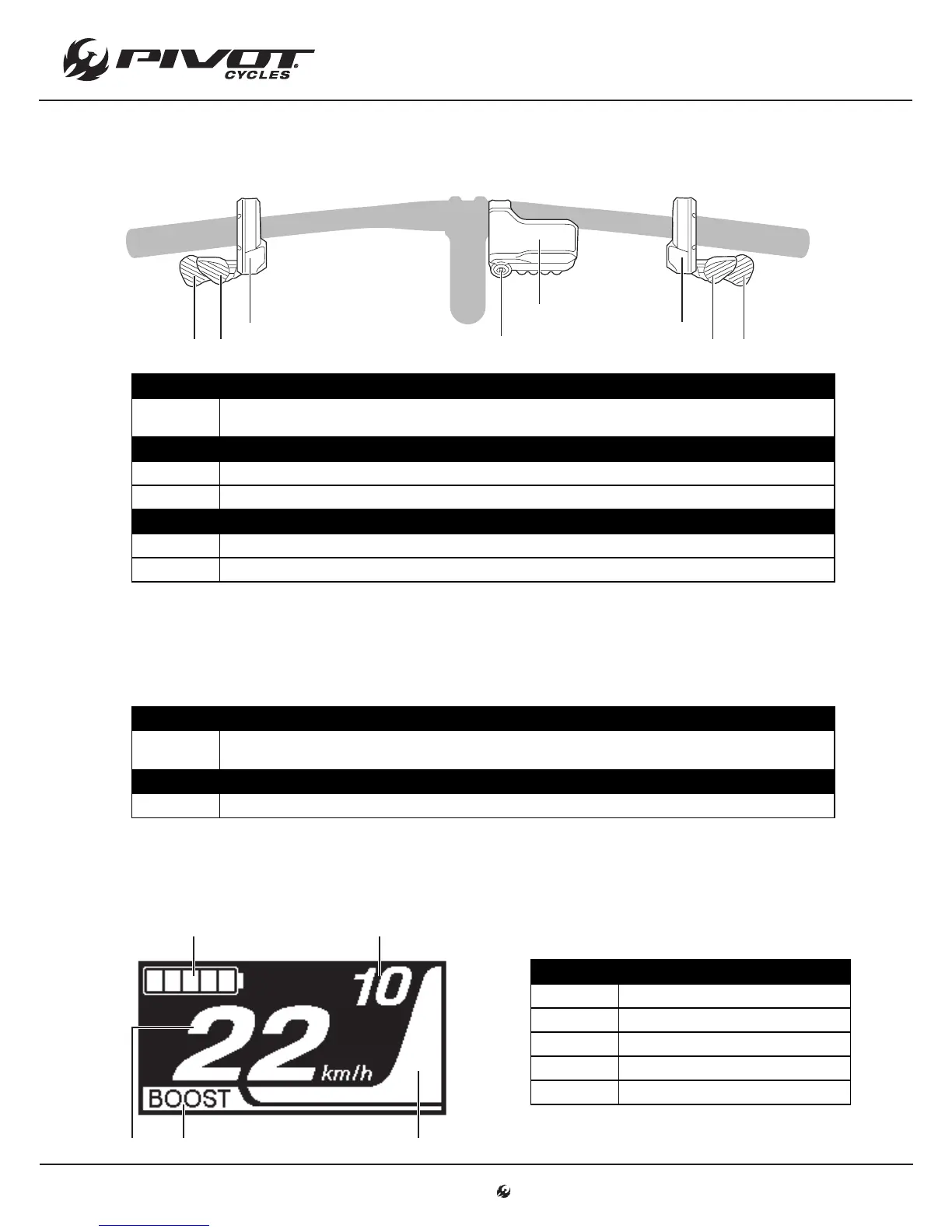

Assist and Shifter Switch Function
• The operation procedure detailed below refers to the cycle computer default setting.
• Refer to the Shimano STEPS E8000 System Schematic for the switches part names.
BUTTON CYCLE COMPUTER (A) FUNCTION
Z1
Switch display modes (Current Speed is default and will return after 60 seconds)
(Display Modes: Distance, Odometer, Range, Travel Time
2
, Avg. Speed
2
, Max. Speed
2
, Cadence
2
, Watts
2
, Calories
2
, Clock)
BUTTON ASSIST SWITCH (B) FUNCTION
X1 Increase the level of assistance (Eco, Trail, and Boost)
Y1 Decrease the level of assistance (Press and hold for WALK mode)
BUTTON SHIFTING SWITCH (C) FUNCTION
X2 Up-shift rear derailleur (Pedaling becomes harder)
Y2 Down-shift rear derailleur (Pedaling becomes easier)
1) When Range displayed, the battery level is not displayed
2) Optional Item
3) When WALK assist is functioning Range displays [RANGE ---]
Y1 X1 Y2X2
(B) (C)
(A)
(Z1)
Operating the Cycle Computer
• The table below references the schematic above.
BUTTON CYCLE COMPUTER (A) FUNCTION
Z1
Switch between screens and conrm settings. (Press and hold to access menu screen)
(Menu Screens: Clear, Clock, Bluetooth, ANT, Light, Brightness, Sound, Units, Language, RD Adjust, RD Protection, Exit)
BUTTON ASSIST SWITCH (B) FUNCTION
X1 / Y1 Move menu cursor, adjusting settings, etc.
LETTER DISPLAY ITEM
A Battery level indicator
B Gear Position
C Assist Gauge
D Assist Mode Display
E Current Speed / Display Mode
1) Only displayed when using Di2
2) [ECO] mode automatically activates as remaining battery capacity declines
Screen Display
• The content below details the display layout for the cycle computer (A) in the Shimano STEPS E8000
System schematic.
(B)(A)
(C)(D)
(E)
BASIC OPERATION
2
