Battery Charging Notes
• The battery does not come charged and must be charged completely before the rst use.
• Only charge the battery with a desginated charger, such as the one included with the bike.
• Battery can be used once the LEDs on the power panel light up.
• When removing the charger from the outlet or the port, pull on the plug, not the cord.
• When charging the battery, plug the cord into the wall outlet rst, and then into the battery.
• Be sure the the charger is on a at and stable surface, when charging.
• Do not leave the battery fully depleted for an extended period of time. This will cause the battery to
deteriorate and reduce the battery capacity.

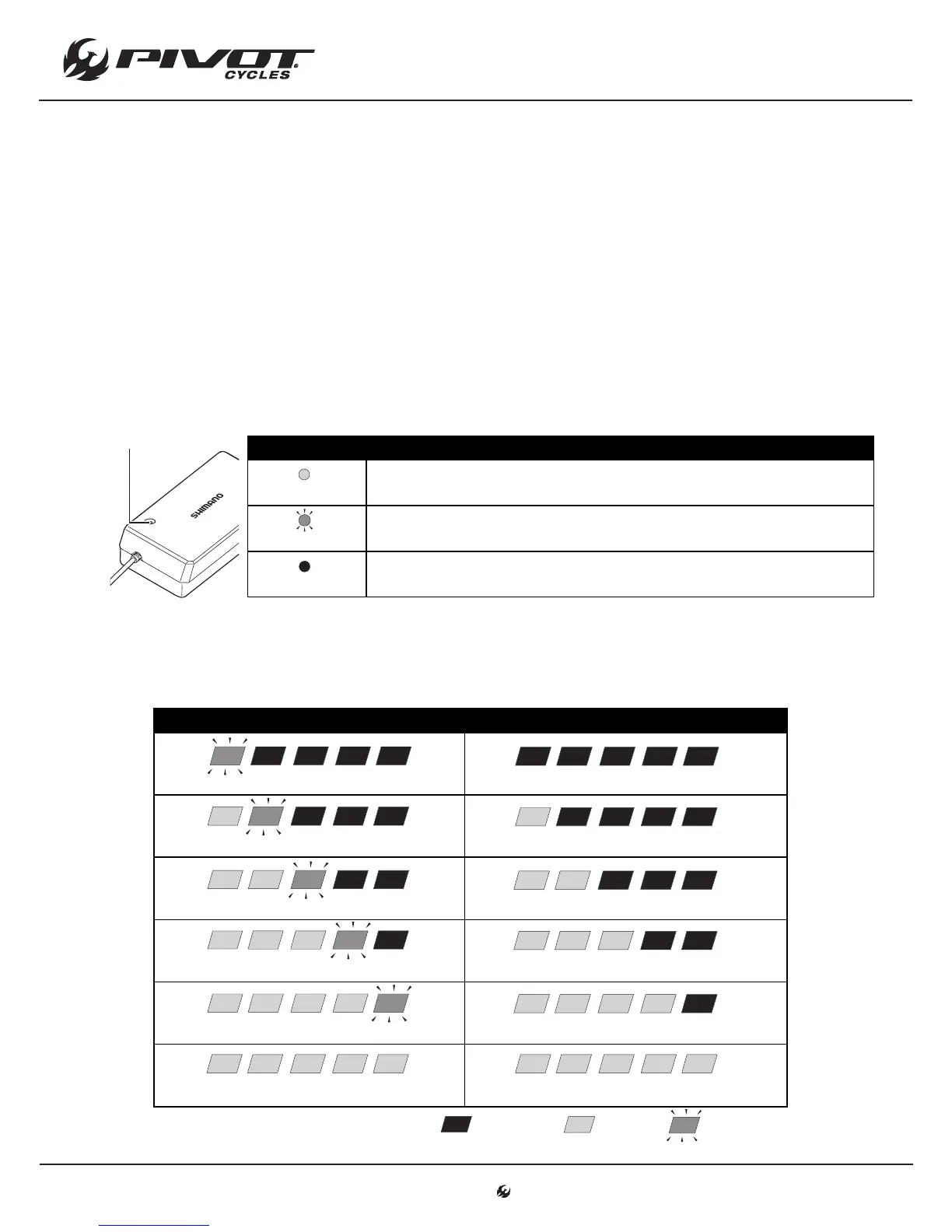

Charger LED Lamp
• After charging has started, the LED lamp on the charger lights up.
Charger LED Lamp
LED INDICATOR DESCRIPTION
Lit Up
Battery Charging (or within 1 hour after the completion of charging)
Blinking
Charging Error
Turned o
Battery Disconnected (or 1 hour or more after the completion of charging)
Battery Power Panel LED Lamps
• You can check the charge level of the battery during charging and while riding.
BATTERY LEVEL WHILE CHARGING* BATTERY LEVEL WHILE RIDING*
0% - 20% 0%, Power OFF / Shutdown
21% - 40% 20% - 1%
41% - 60% 40% - 21%
61% - 80% 60% - 41%
81% - 99% 80% - 61%
100% 100% - 81%
: No Light : Lit Up : Blinking
*
SHIMANO STEPS E8000 SYSTEM
8

Pivot SHUTTLE Specifications

General

Suspension	Full Suspension
Brake Type	Hydraulic Disc
Category	E-Bike
Wheel Size	29"
Gears	Shimano XT
Weight	Approx. 22.5 kg
