www.pivotcycles.com 1.877.857.4868
Recommended Tire Pressure
• Tire pressure is an important factor on having the bike ride properly. If the tire pressure is too high, the tire
will not conform to ground, reducing traction. If the tire pressure is too low, the tire could pinch at.
• It is important to have an accurate pressure gauge when setting tire pressure; preferably a digital gauge
with a 0.03 [bar] (0.5 [psi]) accuracy.
• The recommended tire pressure will vary slightly based on rider weight, riding style, and terrain.
• Some riders may nd it helpful to start a ride at a slightly higher pressure than recommended and let out
a little air throughout the course of the ride until you nd your ideal riding tire pressure.
RECOMMENDED TIRE PRESSURE
FRONT REAR
1.24 [bar] / 18 [psi] 1.52 [bar] / 22 [psi]
BIKE SET-UP

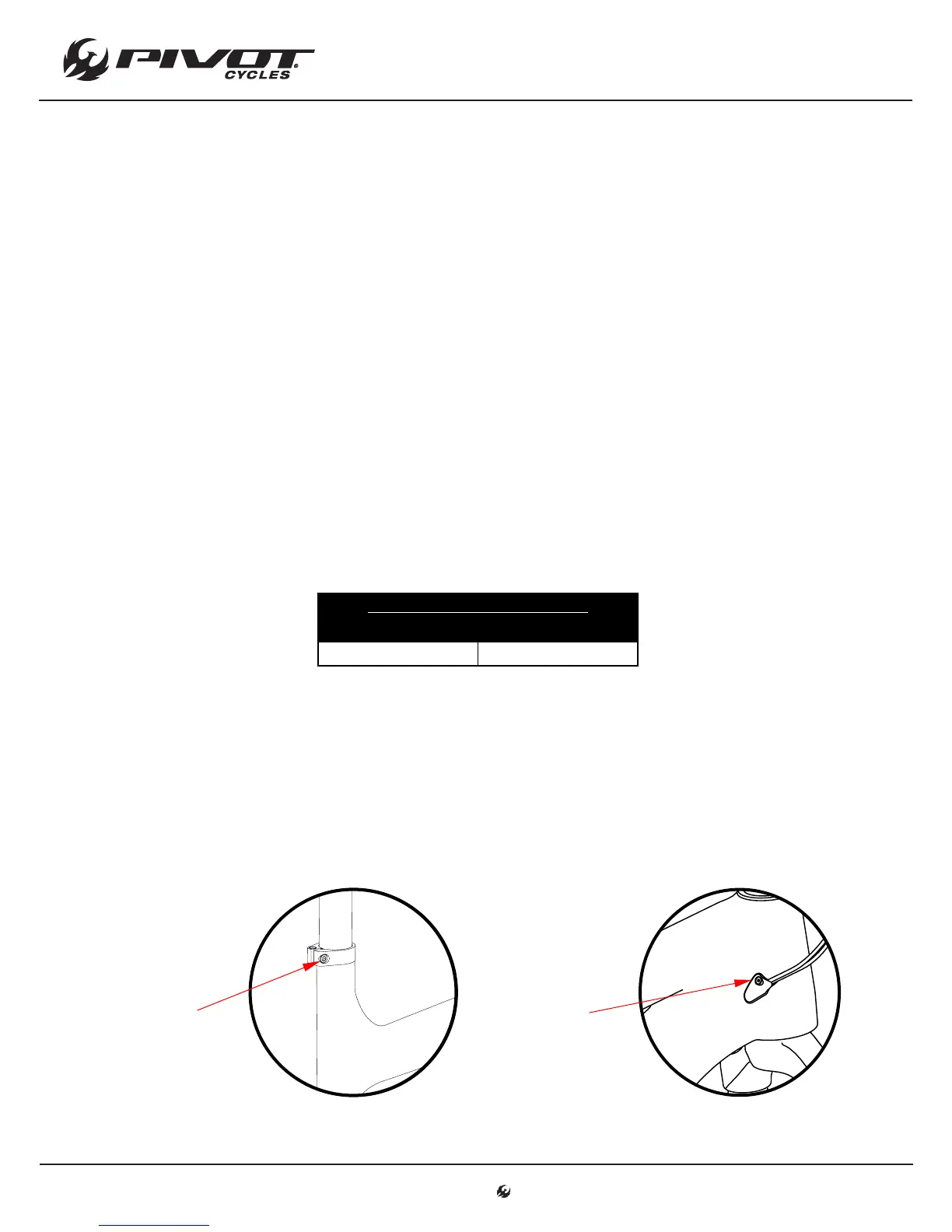

Adjusting Saddle Height
• The seat post collar on the Shuttle can be loosened and tightened with a 4mm hex wrench.
• Before raising or lowering the seat height, using a 2mm hex wrench, loosen the head tube cable port
securing the dropper post housing.
• The dropper post cable should be routed through the cable port on the driveside of the head tube. This
cable port cap is used to hold the dropper post cable and cycle computer wire in place.
• Be sure to re-tighten the cable clamp on the head tube cable port after adjusting the saddle height.
4mm
Hex Wrench
2mm
Hex Wrench
Setting Compression Damping on the Fox 36 Fork
• To set compression, start from the open (or fastest) position by turning the black compression dial on the
top of the right fork leg counterclockwise until it stops clicking.
• Turn black dial clockwise in 2-8 clicks in (depending on rider weight). Most riders should feel comfortable
with 6 clicks in as a starting point.
• Lighter riders will generally prefer less compression damping (fewer clicks from open).
Setting Rebound Damping on the Fox 36 Fork
• To set rebound, start from the open (or fastest) position by turning the red rebound dial on the bottom of
the right fork leg counterclockwise until it stops clicking.
• Turn red dial clockwise in 5-8 clicks in (depending on rider weight). Most riders should feel comfortable
with 8 clicks in as a starting point.
