Pivot SHUTTLE User Manual

www.pivotcycles.com 1.877.857.4868

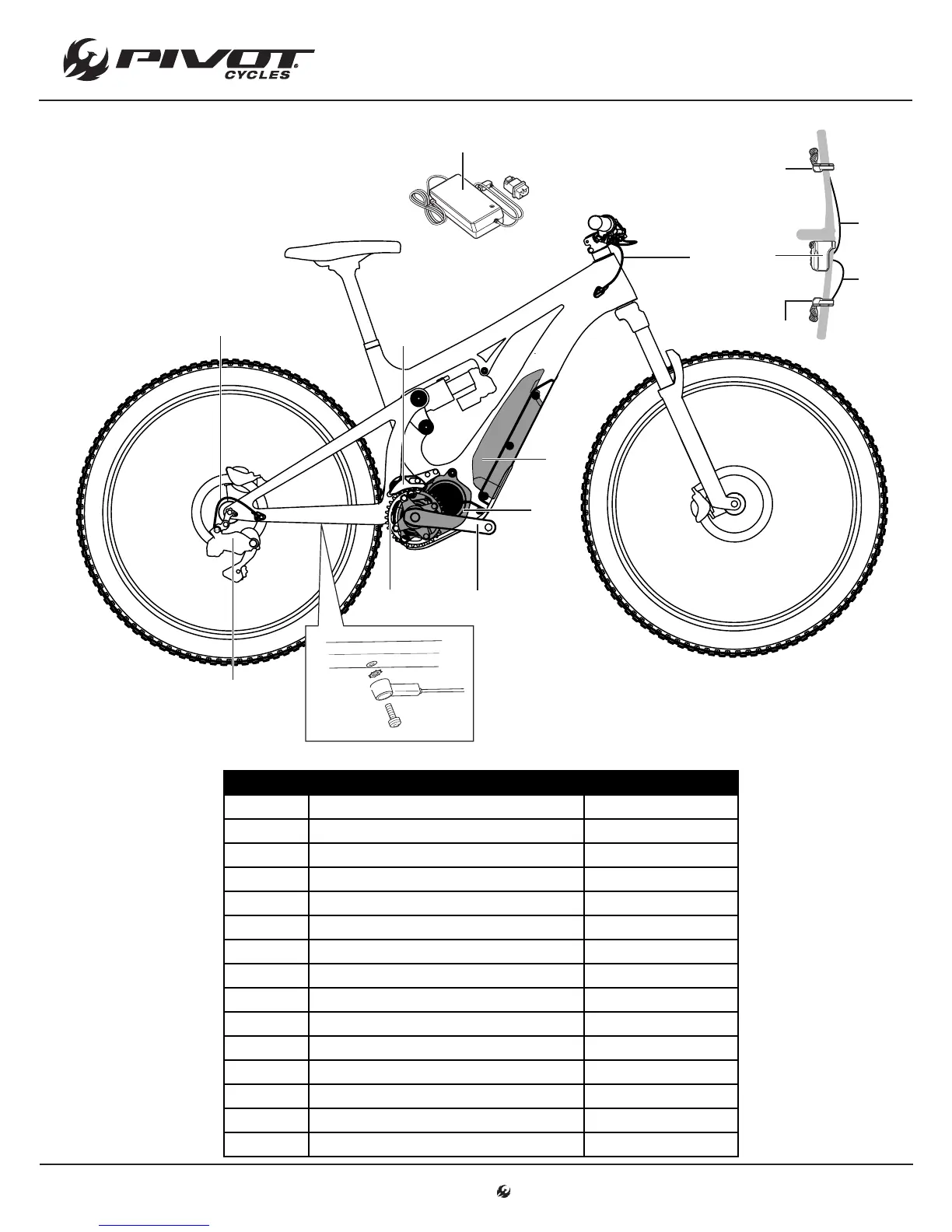

Shimano STEPS E8000 System Schematic
(A)
(B)
(D)
(E)
(F)
(G)
(H)
(I)
(J)
(L)
(C)
(K)
LETTER PART DESCRIPTION PART NAME
A Cycle Computer SC-E8000
B Assist Switch SW-E8000-L
C Shifting Switch SW-M8050-R
D Front Chainring SM-CRE80-B
E Chain Device SM-CDE80
F Crank Arm FC-E8050
G Drive Unit DU-E8000
H Speed Sensor SM-DUE10
I Battery / Mount BT-E8010 / BM-E8010
J Battery Charger EC-E6000
K Rear Derailleur (Di2) RD-M8050
L Cycle Computer E-Tube Wire (1000mm) EW-SD50
M Assist Switch E-Tube Wire (400mm) EW-SD50
N Shifting Switch E-Tube Wire (300mm) EW-SD50
O Rear Derailleur E-Tube Wire (900mm) EW-SD50
(M)
(N)
(O)
SCHEMATICS
12

Pivot SHUTTLE Specifications

General

Suspension	Full Suspension
Brake Type	Hydraulic Disc
Category	E-Bike
Wheel Size	29"
Gears	Shimano XT
Weight	Approx. 22.5 kg
