Bike Set-up
• Before riding, reference the chart below as a rough guide on how to set the bike's components.
This "Quick Start Guide" provides the essential information to set up your bike. For detailed information
about the Shimano STEPS E8000 System and bike set up, please refer to the full owner's manual.
Adjusting Saddle Height
• The seat post collar on the Shuttle can be loosened and tightened with a 4mm hex wrench.
• Before raising or lowering the seat height, using a 2mm hex wrench, loosen the head tube cable port
securing the dropper post housing. Be sure to re-tighten the cable clamp after adjusting the saddle height.
Charging the Battery
• The battery does not come charged and must be charged completely before the rst use.
• The charging port is located on the non-driveside of the downtube near the bottom of the battery.
• The battery has a sealing cover (g. 1) that needs to be removed for charging.
• The charging cable (g. 2) is plugged into the battery through the charging window in the frame. The
battery can also be charged o the bike. For battery removal instructions, see the full owner's manual.
• Make sure the the charger is securely attached. To verify that the bike is charging, the light on the charger
will illuminate and lights on the battery power panel will light up to indicate the charging level. For
additional information regarding the battery power indicator lights, see the full owner's manual.
Powering the System ON and OFF
• When powering the system ON or OFF, do not have your feet on the pedals; a system fault may result.
• The power button (g. 3) on the battery can be accessed through the window in the top of the downtube.
• Power cannot be turned on while the battery is charging.
• If the bike has not moved for 10 minutes, the power will shut o automatically.
1
2
3

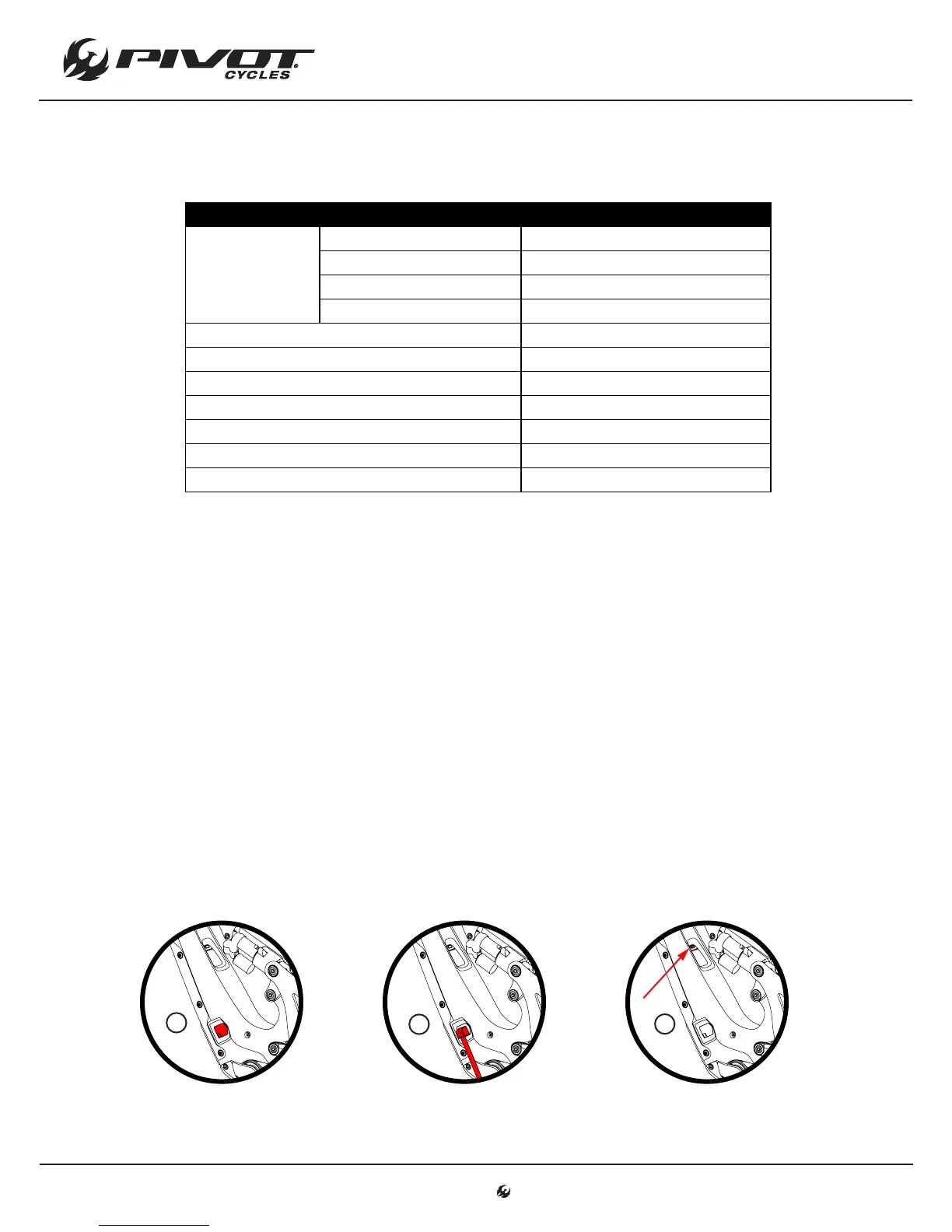

COMPONENT QUICK START SETTING
Shock Air Pressure
(by Body Weight)
Body Weight in [kg] to [bar] 0.15 × Body Weight [kg] + 2.4 [bar]
Body Weight in [kg] to [psi] 2.2 × Body Weight [kg] + 35 [psi]
Body Weight in [lbs] to [bar] 0.07 × Body Weight [lbs] + 2.4 [bar]
Body Weight in [lbs] to [psi] Body Weight [lbs] + 35 [psi]
Fork Air Pressure 70 [psi] / 4.83 [bar]
Shock Compression Damping 7 clicks in (clockwise) from OPEN
Shock Rebound Damping 7 clicks in (clockwise) from OPEN
Fork Compression Damping 6 clicks in (clockwise) from OPEN
Fork Rebound Damping 8 clicks in (clockwise) from OPEN
Front Tire Pressure 18 [psi] / 1.24 [bar]
Rear Tire Pressure 22 [psi] / 1.52 [bar]
Assist Mode Operation
• On start-up, the assist mode will be o. There are three levels of assistance: Eco, Trail, and Boost.
• The switch on the left side of the handle bar controls the level of assistance provided by the system.
