www.pivotcycles.com 1.877.857.4868
SHIMANO STEPS E8000 SYSTEM

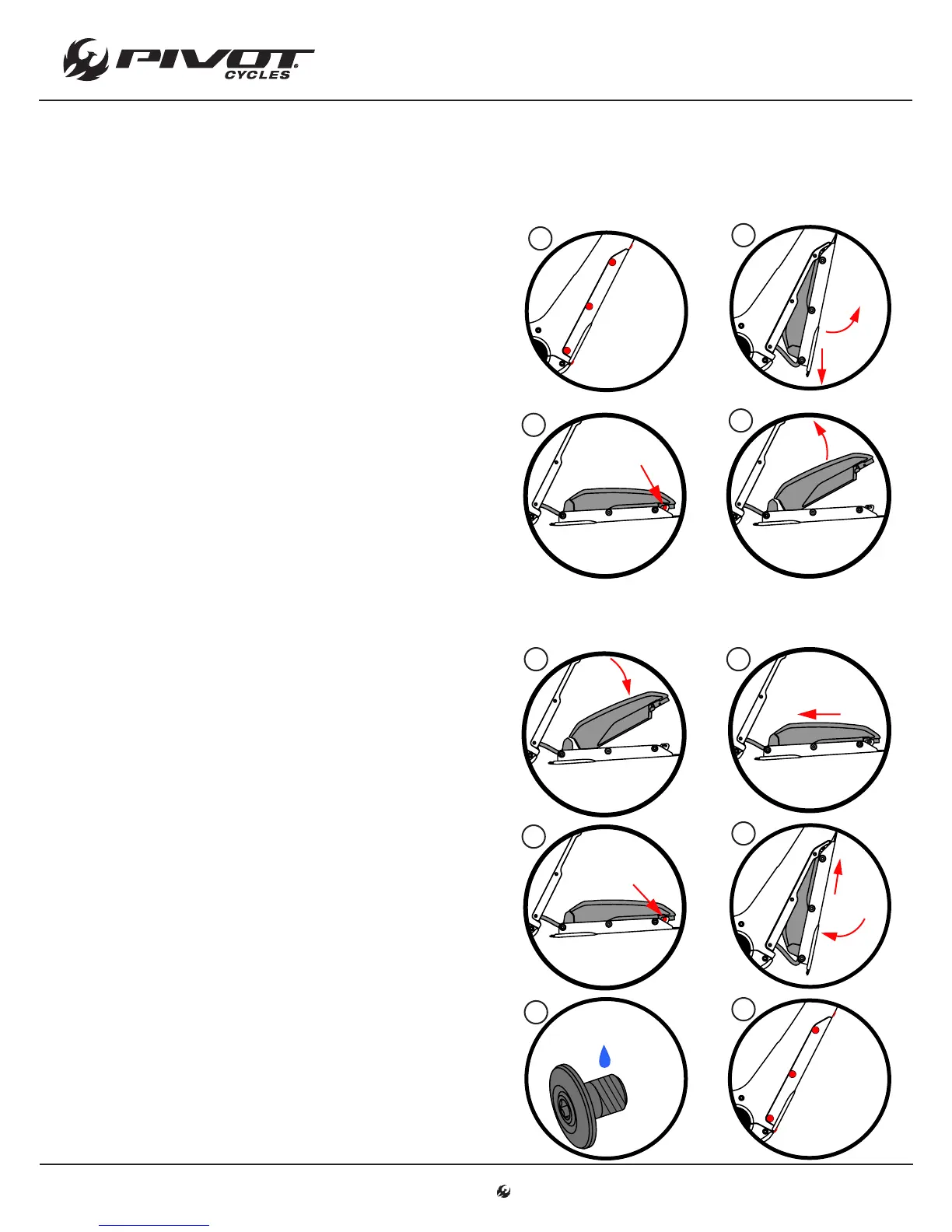

Installing the Battery
• To install the battery, reverse the removal procedure from above.
1. Install the battery onto the cover by aligning the
rear of the battery with the battery receiver and
then lowering the front of the battery into place.
2. Push the battery backward to ensure tight
engagement between the battery and receiver.
3. Thread the M5 bolts into the battery bracket
through the slots on the battery cover. Make sure
the washers are between the bolt head and the
battery cover. Tighten the bolts to 7 Nm.
4. Insert the front of the battery into the battery
cavity and slide it forward until the rear of the
battery clears the back edge of the cavity. Lift the
back edge of the battery into the battery cavity.
Make sure that the battery cable clears the back
edge of the battery cavity when installing the
battery.
5. Apply blue Loctite 243 on the threads of the
eight M6 battery cover bolts.
6. Using a 3mm allen wrench, replace all eight M6
bolts and tighten to 5 Nm.
3mm
Hex Wrench
(5 Nm)
6
4
1
3
4mm
Hex Wrench
(7 Nm)
2
Apply
Loctite 243
5
Removing the Battery
• The battery may need to be removed to swap batteries or charge the battery if there is no power supply
near the bike.
• When the battery is removed, the cover will stay attached to the bike, and the front battery bracket will
stay attached to the battery.
1. Using a 3mm hex wrench, remove the eight M6
bolts securing the battery cover to the frame.
Support the cover as while removing the last
bolts, since the battery is attached to the cover.
2. Pull the rear of the cover downward until the wire
harness clears the frame. Once the wire clears
the frame, pull the cover backwards to pull that
battery out of the frame.
3. Using a 4mm hex wrench, remove the two M5
bolts securing the battery to the battery cover.
4. Pull the battery upward to remove the battery
from the cover.
2
3
4mm
Hex Wrench
4
3mm
Hex Wrench
1
