12 - ATR144 - User manual

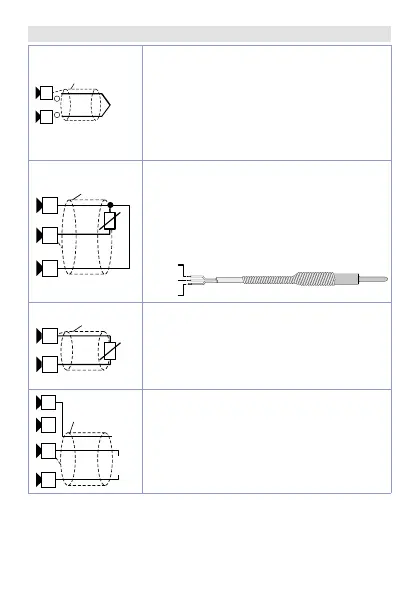

6.1.b Analogue input AI1
Shield/Schermo
TC
11
12
+
-
For thermocouples K, S, R, J, T, E, N, B.
Comply with polarity
For possible extensions, use
compensated cable and terminals
suitable for the thermocouples used
(compensated).
When shielded cable is used, it should
be grounded at one side only.
PT/NI100
Shield/Schermo
10
11
12
For thermoresistances PT100, Ni100.
For the three-wire connection use
wires with the same section.
For the two-wire connection short-
circuit terminals 10 and 12.
When shielded cable is used, it should
be grounded at one side only.
RED/ROSSO
RED/ROSSO
WHITE/BIANCO
Shield/Schermo
PTC/NTC
10
11
For thermoresistances NTC,
PTC, PT500, PT1000 and linear
potentiometers.
When shielded cable is used, it should
be grounded at one side only to avoid
ground loop currents.
Shield/Schermo
+V V/I
+-
9
10
11
12
For linear signals in Volt and mA
Comply with polarity
When shielded cable is used, it should
be grounded at one side only to avoid
ground loop currents.
