PLANET ECLIPSE EMF100 - EMF100 Inline Regulator; Three-Way Assembly

FIG-1
FIG-1
36 37
EMF100 EMF100
TECHNICAL

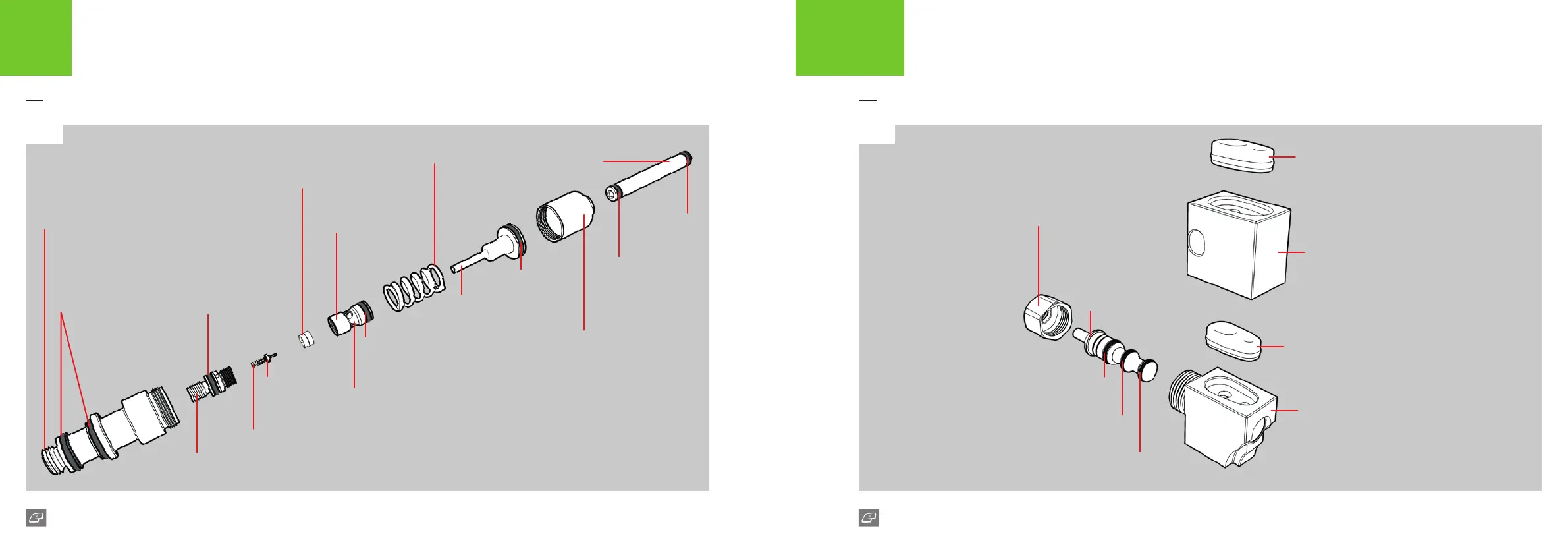

EMF100 INLINE REGULATOR
1
TECHNICAL
THREE-WAY ASSEMBLY
Regular body
Adjuster bottom
Purge poppet
3
Purge poppet spring
Adjuster external
o-ring #011 NBR70
Adjuster internal
o-ring #008 NBR70
Regulator spring
2
Inlet pipe
Regulator seal
Regulator
piston
Piston
o-ring
14 x 2
NBR70
Regulator cap
#010 NBR70
#010 NBR70
Adjuster top
Adjuster o-ring
#011 NBR70
1 Reset the EMF100 regulator to factory after re-assembly.
2 Only use the spring provided with the EMF100 regulator.
3 Failure to re-install the purge poppet assembly correctly
could seriously damage the EMF100.
Regulator body o-rings
#015 NBR70
#6 Seal (custom)
#6 Seal (custom)
4 x 1 NBR70
Three-way valve capThree-way valve cap
Three-way valve spool
Three-way valve body
Three-way valve gasket
EMF100 transfer block
Three-way valve gasket
