PLANET ECLIPSE EMF100 - Attaching a Front Shroud; Accessory Mounting

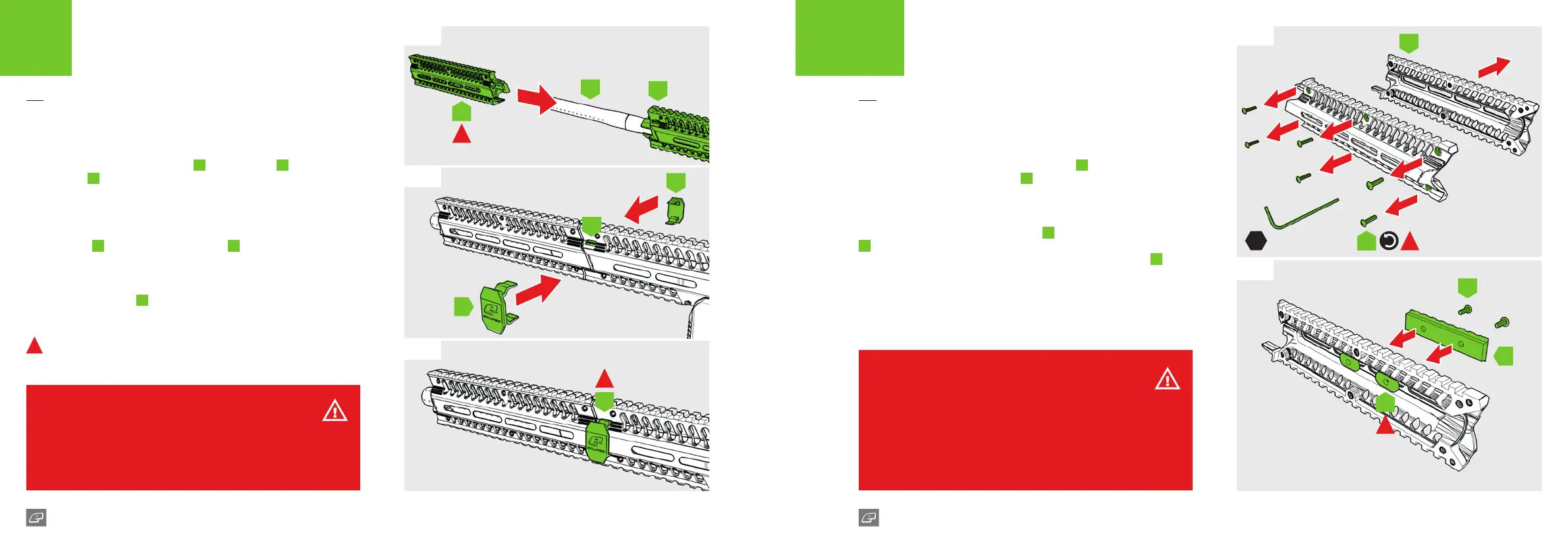

FIG-1
To attach the front shroud and complete the full EMF100 rail kit setup
simply push the front shroud section
A
over the barrel
B
and into the
body section
C
. Check the angle of the connecting sections so it slots
together correctly. Push together rmly so both sections t.
FIG-2
Once the front shroud is connected to the body section insert the shroud
retention clips
D
into the clip retention slots
E
on both sides of the
shroud. These clips ensure both shroud sections are secure.
FIG-3
Once the retention clips
D
are in place the shroud sections are secure.
1
IMPORTANT! The front shroud may not be compatible with third
party barrel systems.
FIG-1
To attach after-market accessories to the shroud sections you must rst
remove and separate both halves of the shroud
A
. Use the 5/32 hex
key to remove the 6 shroud screws
B
rotating counter-clockwise. Then
separate both halves of the shroud.
FIG-2
Attach a third party picatinny rail section
C
by inserting the wingnuts
E
on the inside of the shroud section in the desired position. Mate the
picatinny rail section with the wingnuts and insert the rail screws
D
gently
until they bind with the wingnut threads. Tighten as necessary so they are
secure and will hold the weight of the accessory.
Once complete re-attach the shroud sections in the reverse manner of
Fig-1. You are now ready to attach your accessories (sold separately).
FIG-1 FIG-1
FIG-2
FIG-2
FIG-3
C
D
D
C
B
A
D
E
D
1
!
!
!
A
E
WARNING!
When removing the shroud retention clips DO NOT twist or pull at an angle as
this could damage or even snap the clip stems if too much force is applied.
The shroud sections will not connect if the front shroud section is the wrong
way up.
WARNING!
Always ensure the marker is degased and free of projectiles when accessorising.
Make sure shroud screws are fully released before separating the sections as
this could damage the screws and/or the shroud sections.
Do not over tighten any screws as this may damage the screws, shroud
sections or rail sections.
Screw sizes will vary based on the picatinny rail kit manufacturer.
WARNING
WARNING
5/32
B
20 21
EMF100 EMF100
QUICK START
ATTACHING A
FRONT SHROUD
QUICK START
ACCESSORY MOUNTING
