PLANET ECLIPSE EMF100 - Inserting the Magazine; Removing the Magazine

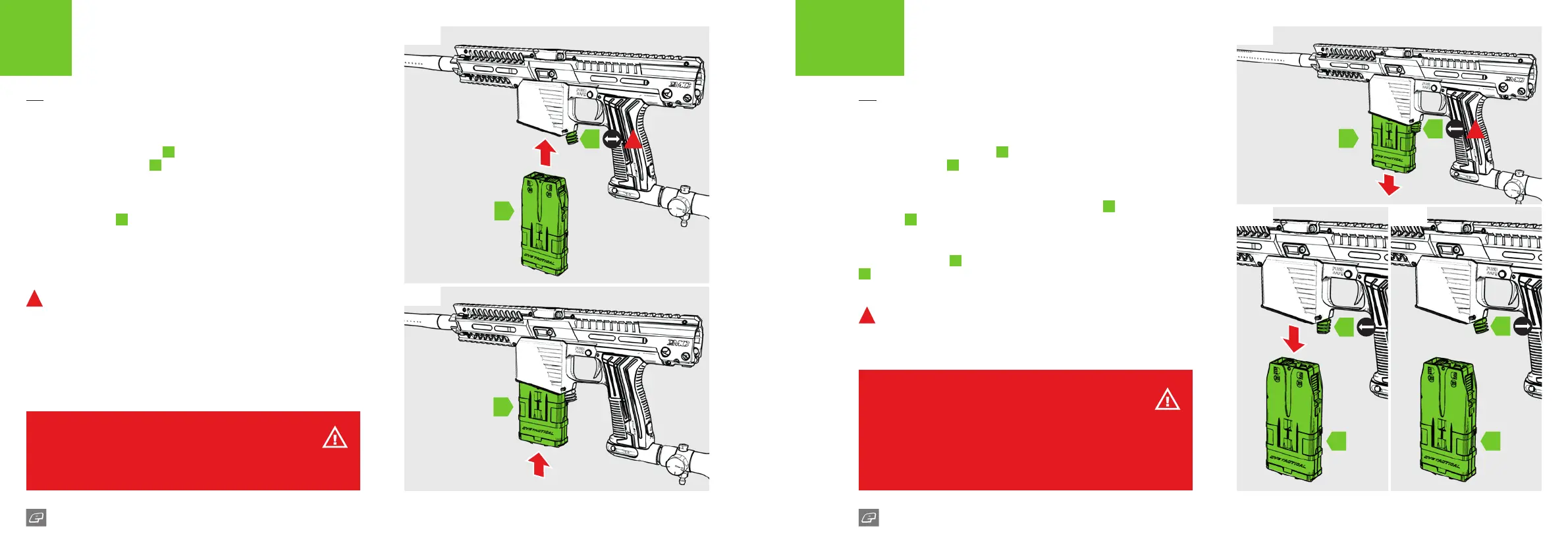

FIG-1
When inserting the magazine.
A
into the magazine well, rstly make sure
the magazine release latch
B
moves freely forwards and backwards
between the locked and unlocked positions.
FIG-2
Push the magazine
A
rmly into the magazine well until the magazine
clicks securely into place. The magazine is now engaged and ready to
use.
1
IMPORTANT! If the magazine latch is damaged the magazine will
not securely engage. In this situation do not use the marker and
contact your local Eclipse dealer for advise.
FIG-1
When removing the magazine
A
from the magazine well push and hold
the magazine latch
B
inwards into the unlocked position.
FIG-2
With the magazine latch held in the unlocked position
B
pull the
magazine
A
downwards until it has fully cleared the magazine well.
FIG-3
Once the magazine
A
has been fully removed release the magazine latch
B
so that it sits in the locked position (facing outwards).
1
IMPORTANT! If the magazine latch is damaged the magazine will
not securely engage. In this situation do not use the marker and
contact your local Eclipse dealer for advise.
WARNING!
Make sure the marker is set to SAFE when installing a loaded magazine if you
are not in a playing environment.
WARNING!
One paintball or shaped round will be left in the marker if a magazine is removed
before it has been emptied. The marker is still able to re this paintball or round.
Make sure the marker is set to SAFE when installing a loaded magazine if you
are not in a playing environment.
WARNING
WARNING
FIG-1
FIG-2
FIG-1
FIG-2 FIG-3
B
B
A A
B
B
A
A
A
1
1
14 15
EMF100 EMF100
QUICK START
INSERTING THE MAGAZINE
QUICK START
REMOVING THE MAGAZINE
