PLANET ECLIPSE EMF100 - Setting up the EMF100 - Hopper Fed

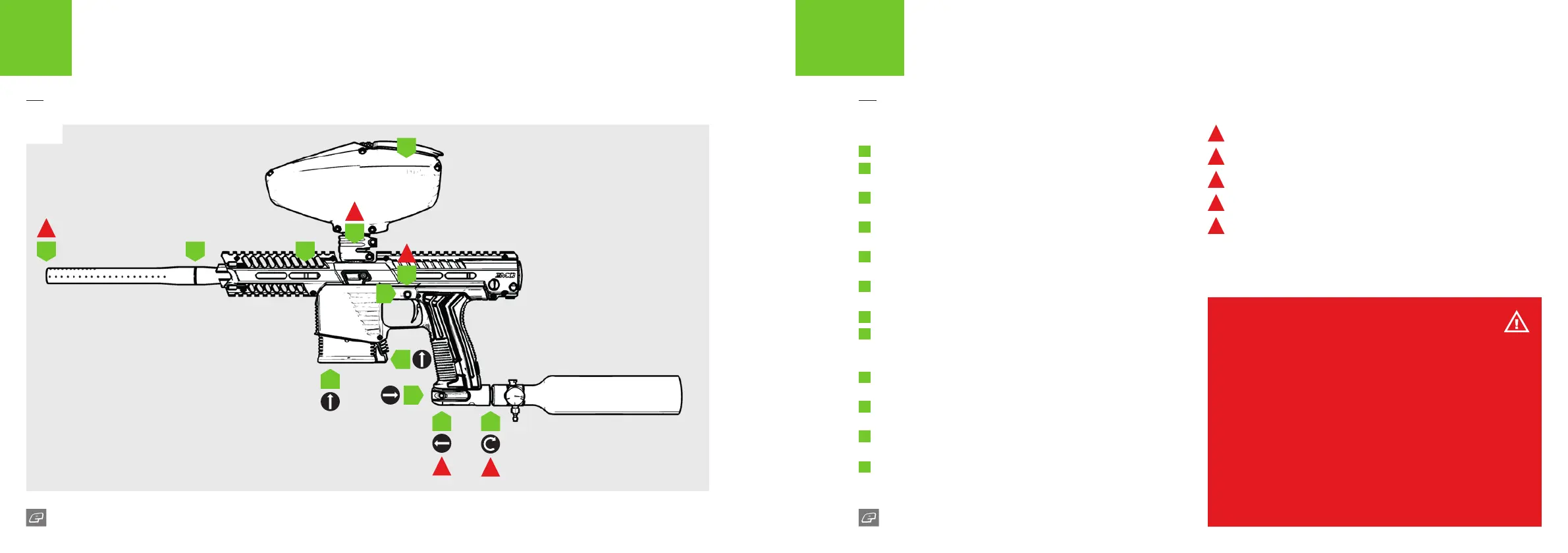

FIG-1
I
A
B
J
EG F
L
K
1
2
3
5
H
C
4
D
08 09
EMF100 EMF100
QUICK START
SETTING UP THE EMF100
HOPPER FED
FIG-1
A
Push the safety button to SAFE before you begin.
B
Make sure the EMF100 is in hopper fed mode.
Attach the PAL feedneck (see pags 12-13).
C
Insert the dummy magazine into magazine well.
Make sure the magazine clicks securely into place.
D
Secure the dummy magazine.
Push the dummy magazine latch up to lock into place.
E
Connect both parts of the barrel together.
Rotate the barrel tip counter-clockwise onto the barrel back.
F
Attach the complete barrel to the marker.
Rotate the barrel clockwise into the marker body.
G
Attach a barrel blocking device for safety.
H
Ensure the marker is de-gassed.
Push in and hold the POPS button and pull the POPS bonnet away
from the POPS body.
I
Attach the preset air system.
Rotate the air system clockwise into the ASA body.
J
Attach PAL loader.
If the feedneck is too tight, loosen the clamping feedneck more.
K
Gas the marker.
Push the POPS bonnet into the POPS body until it engages.
L
Push the safety button to FIRE.
The marker will now re when the trigger is pulled.
QUICK START
SETTING UP THE EMF100
HOPPER FED
1
IMPORTANT! To enable SAFE/FIRE see pages 10-11.
2
IMPORTANT! Hopper will not attach if PAL feedneck is not tted.
3
IMPORTANT! Safety precaution if marker res accidentally.
4
IMPORTANT! Always ensure marker is de-gassed when setting up.
5
NEVER use CO2. Only use compressed air or Nitrogen.
WARNING!
Always make sure that the marker is in SAFE mode with a barrel blocking device
installed and that no paintballs are in the marker or loader before attaching an
air system.
Compressed air and nitrogen systems can be extremely dangerous if handled
or used incorrectly.
Only attach an air system certied for use within the country of use.
Never add lubricants or grease into the ll adaptor of the air system regulator.
Ensure that all screws are tightened and no parts are loose before installing an
air system.
Do not pressurise the marker without the bolt system correctly installed, as high
pressure gas will be emitted.
Do not install a compressed air system or load paintballs into the marker until
you feel condent with your ability to handle the marker safely and responsibly.
WARNING
