PLANET ECLIPSE EMF100 - Bolt Assembly (68 Cal); Push on Purge System

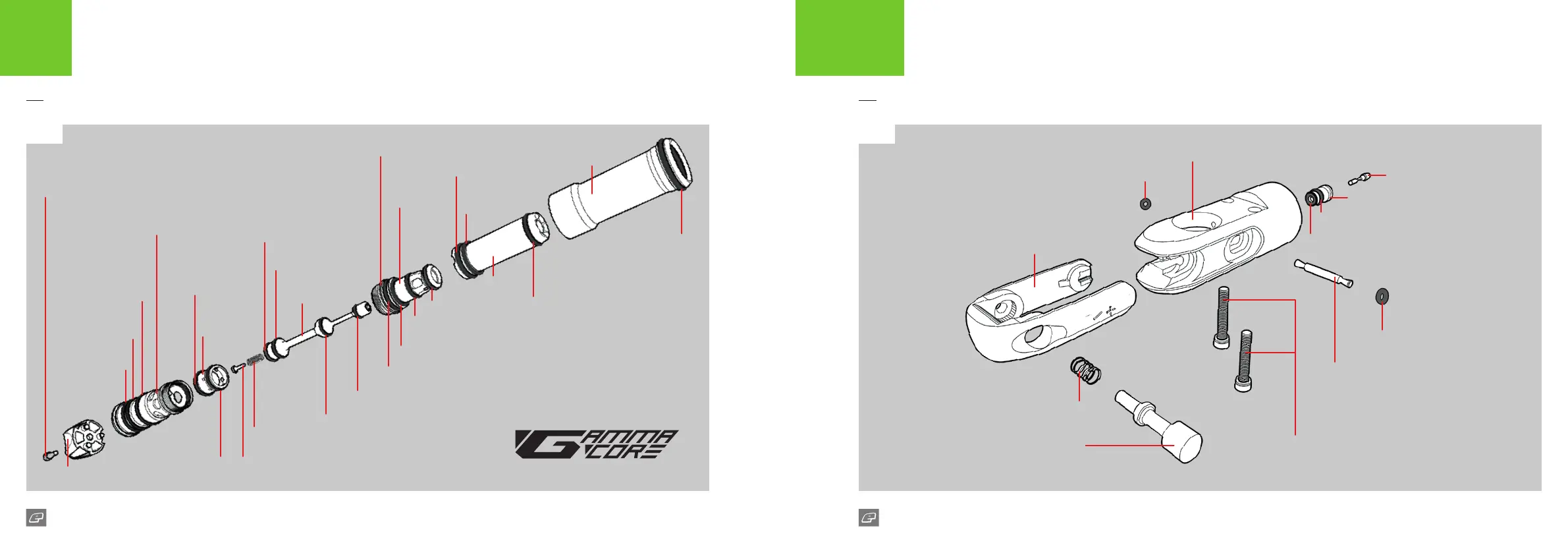

FIG-1 FIG-1
Latch spring
POPS insert
POPS screw 10-32 UNF x 1”
cap head socket
POPS pin
Latch button
Internal o-ring #005 NBR90
External o-ring #007 NBR70
#004 NBR70
Push rod
POPS body
POPS bonnet
#004 NBR70
38 39
EMF100 EMF100
TECHNICAL
BOLT ASSEMBLY (68CAL)
TECHNICAL
PUSH ON PURGE SYSTEM (POPS)
Back cap
10-32 UNF x 0.5”
cap head screw
#012 NBR70
Bolt guide
#014 NBR70
#015 NBR90
14 x 2 NBR70
#016 NBR70
#012 NBR70
#011 NBR70
Switch
#016 NBR70
Valve chamber
#020 NBR70
#020 NBR70
#020 NBR70
Bolt
#013 NBR70
Can
#020 NBR70
Internal:
#017 NBR70
Spring guide
Spool spring
Spool
#008 NBR70
14 x 2 NBR70
#013 NBR70
#013 NBR70
#013 NBR70
