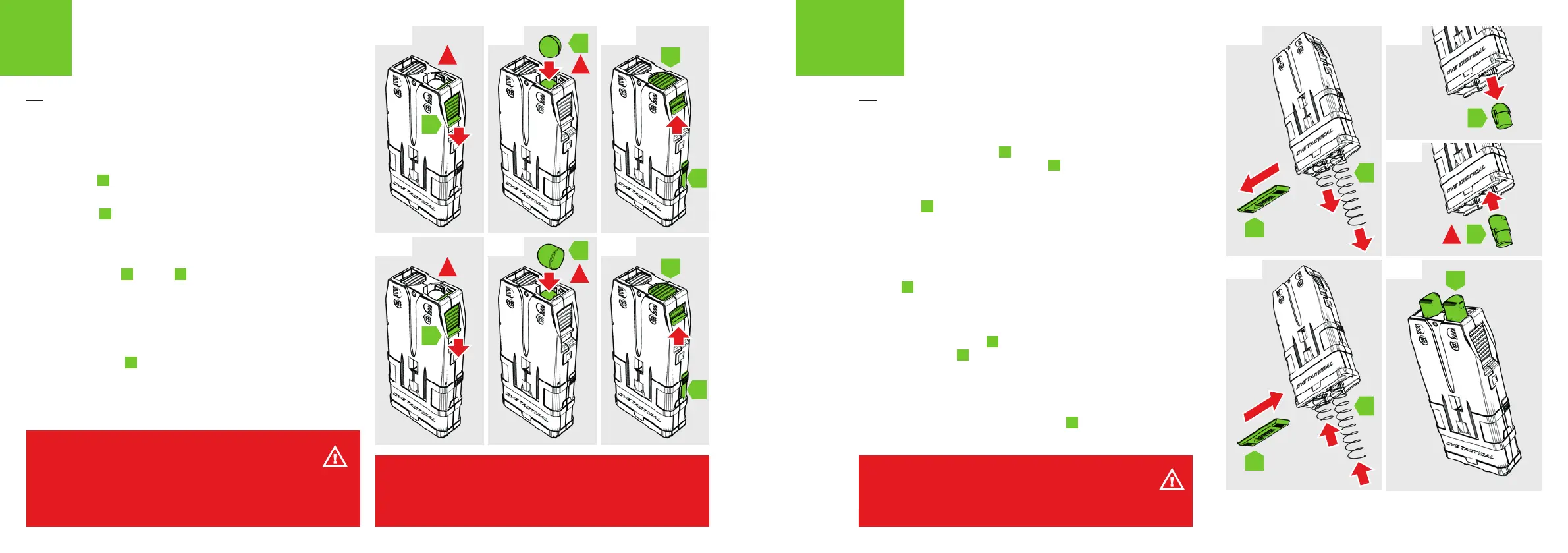

PLANET ECLIPSE EMF100 - Loading; Reloading; Changing Magazine Springs

Loading Paintballs
FIG-1
Cover both magazine chambers with your hand then pull one magazine
chamber cover
A
down to open.
FIG-2
Insert paintballs
B
one by one into the magazine chamber.
FIG-3
Once 5 or 10 rounds are loaded (capacity dependant) press gently
downwards to engage the follower retainer. Next press the chamber
cover release button
C
to close
A
. Repeat for the next chamber.
Loading shaped rounds
FIG-4
Repeat the process as explained in Fig-1.
FIG-5
Insert shaped rounds
D
one by one into the magazine chamber, with the
front of the round facing towards the centre of the magazine.
FIG-6
Repeat the process as explained in Fig-3.
FIG-1
FIG-4
FIG-2 FIG-1
FIG-5
FIG-4
FIG-3 FIG-2
FIG-3
FIG-6
FIG-5
B
D
A
A
A
A
D
C
C
!
!
!
FIG-1
Slide the spring retention plate
A
away from the magazine base in the
direction shown on the plate. The springs
B
will pop out.
FIG-2
The followers
C
will drop to the bottom of the magazine chamber. Pull
the magazine chamber cover down and the follower will drop out.
FIG-3
With the magazine upside down, fully retract each magazine chamber
cover to allow the followers to fall down into the magazine. Insert the new
followers
D
into position with the at face near the top of the follower
facing outwards (away from the middle of the magazine).
FIG-4
Insert the upgraded springs
E
and compress them as you slide the
spring retention plate
A
in (reverse to how it was removed).
Take care not to trap the springs under the spring retention plate.
FIG-5
When the Eclipse magazine follower and spring upgrade kit has been
installed the followers will look as shown here
D
.
B
E
C
D
A
A
DO NOT depress the magazine follower without paintballs in the magazine.
On rare occasions releasing a locked follower without paintballs in place can
seriously damage the magazine. NEVER discharge a fully locked follower at
yourself or anyone else.
16 17
EMF100 EMF100
QUICK START
LOADING / RELOADING
QUICK START
CHANGING MAGAZINE
SPRINGS
!
!
WARNING!
Loaded magazines will eject paintballs as soon as the chamber cover opens.
DO NOT open the chamber cover while the magazine is pointed at your (or
anyone’s) face. For safety always place your hand over the top of a magazine
before opening the chamber covers.
WARNING
WARNING!
Be careful when removing springs when they’re under tension.
Make sure the new followers are installed the correct way up, facing outwards.
WARNING
