TECHNICAL
TWO-PIECE GRIPS
D
B
C
A
E

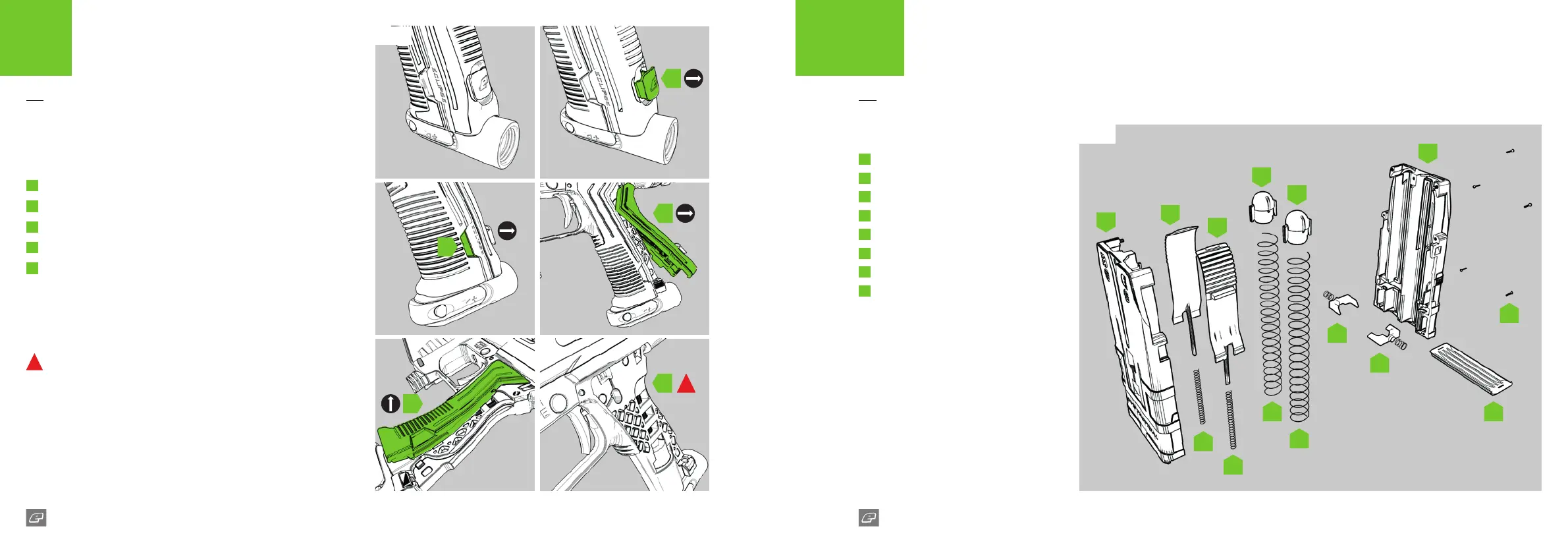

The EMF100’s toolless two-piece grip system makes it incredibly easy
to remove and clean the grips after a big day out in the eld.
FIG-1
A
Locate and pull back the rear grip locking tab.
B
Use the nger recess to help release the rear grip section.
C
Once released, fully remove the rear grip section from the frame.
D
The front grip section can now be released and removed.
E
You can now easily access the frame and separate grip pieces for
thorough cleaning.
Repeat the steps in reverse order to reattach the grips to the frame.
1
BE CAREFUL when cleaning the frame, there are exposed
operational elements that may be aected if wet.
1
TECHNICAL
MAGAZINE
FIG-1
1
Magazine shells
2
Magazine chamber covers
3
Magazine chamber cover springs
4
Followers
5
Follower springs
6
Follower retention clips
7
Spring retention plate
8
Magazine screws
