LACP packet.
• Priority
The Priority controls the priority of the port. If the LACP partner wants to form a
larger group than is supported by this device then this parameter will control
which ports will be active and which ports will be in a backup role. Lower number
means greater priority.
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
4.3.2.4 LACP System Status
This page provides a status overview of all LACP instances. The LACP Status Page display the current LACP aggregation
Groups and LACP Port status. The LACP System Status screen in Figure 4-3-2-6 appears.

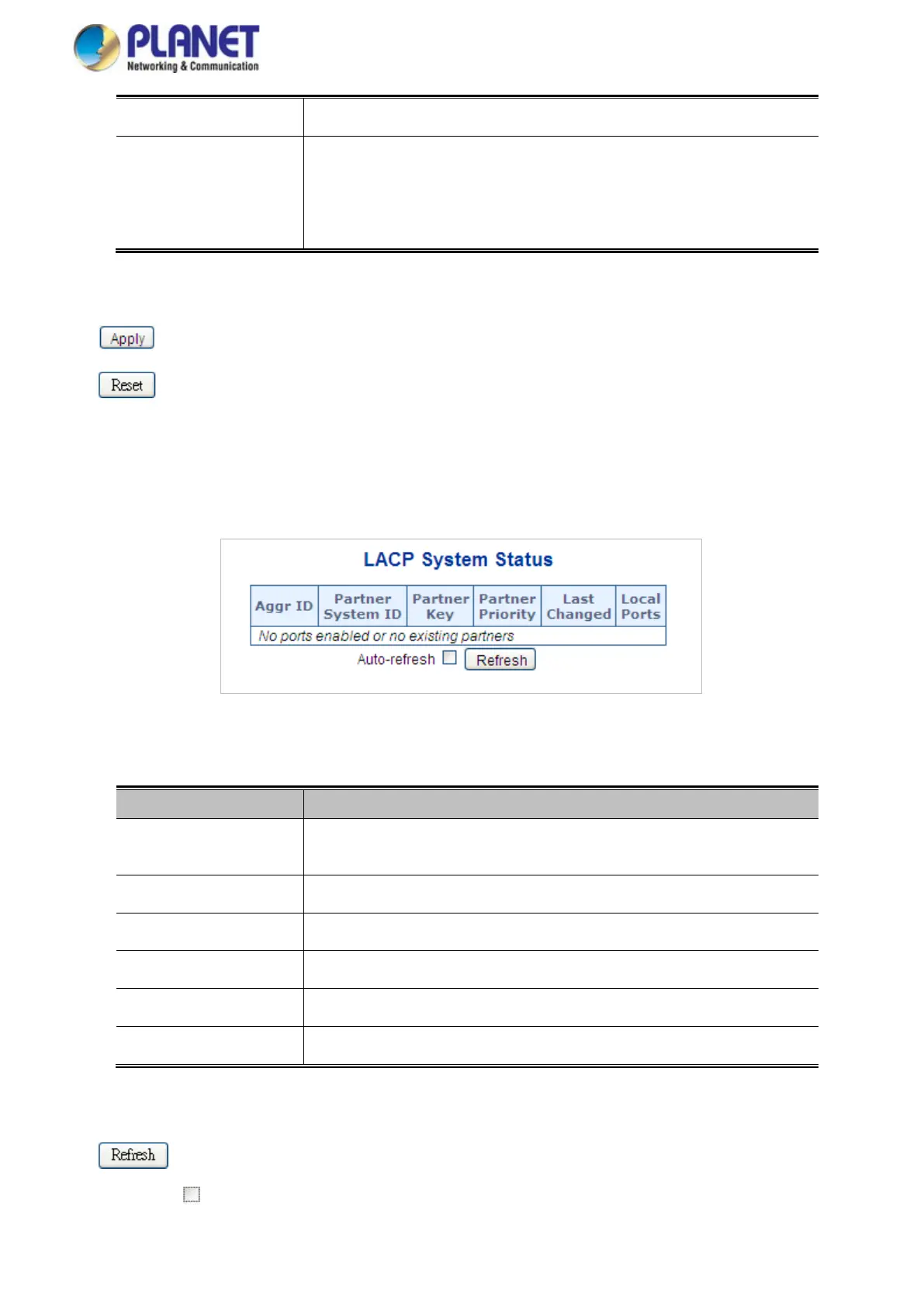

Figure 4-3-2-6: LACP System Status Page Screenshot
The page includes the following fields:
Object Description
• Aggr ID
The Aggregation ID associated with this aggregation instance.
For LLAG the id is shown as 'isid:aggr-id' and for GLAGs as 'aggr-id'
• Partner System ID
The system ID (MAC address) of the aggregation partner.
• Partner Key
The Key that the partner has assigned to this aggregation ID.
• Partner Priority
The priority of the aggregation partner.
• Last Changed
The time since this aggregation changed.
• Local Ports
Shows which ports are a part of this aggregation for this switch.
Buttons
: Click to refresh the page immediately.
Auto-refresh : Automatic refresh occurs every 3 seconds.
