4.3.1.2 Port Statistics Overview
This page provides an overview of general traffic statistics for all switch ports. The Port Statistics Overview screen in Figure
4-3-1-2 appears.

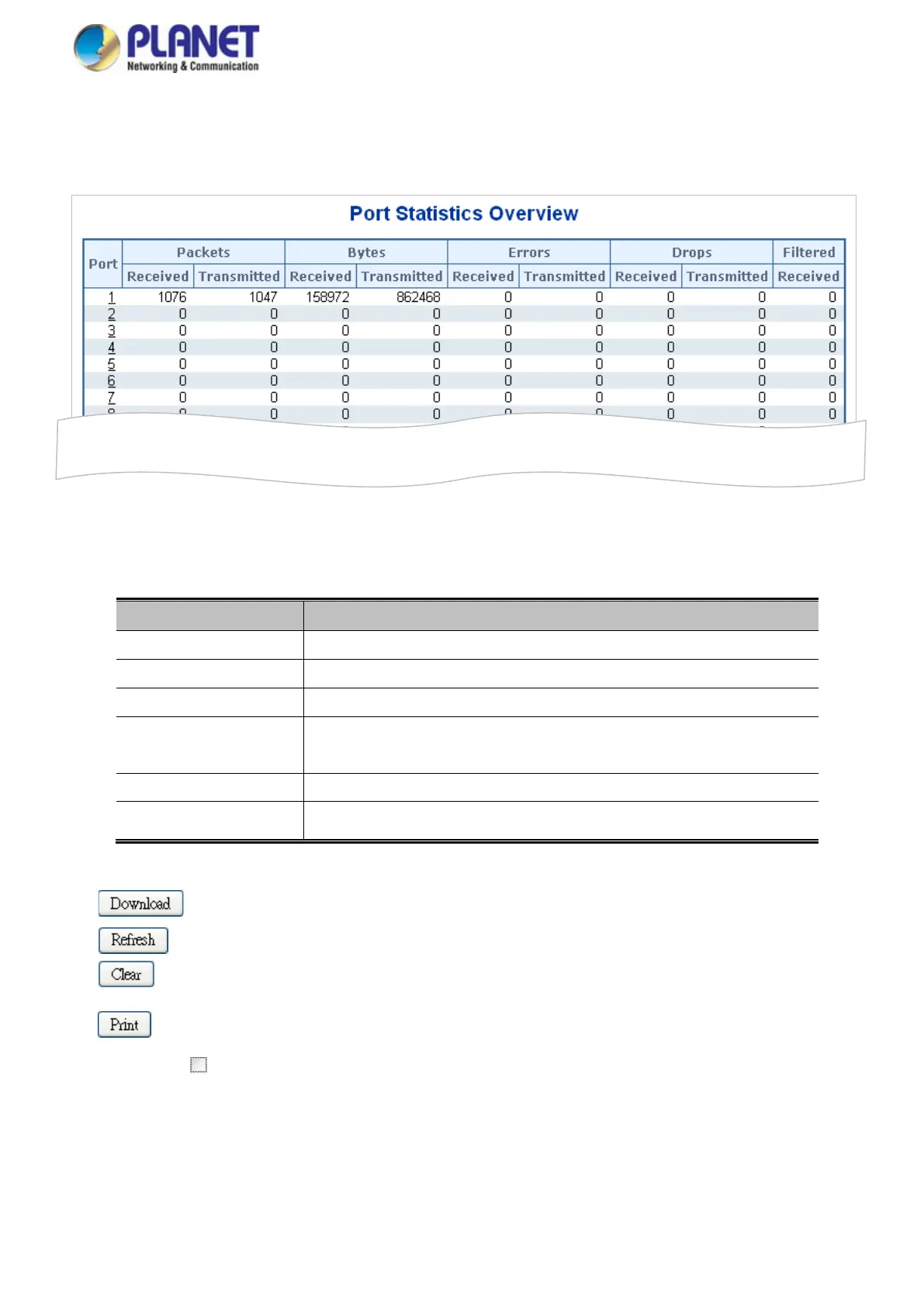

Figure 4-3-1-2: Port Statistics Overview Page Screenshot
The displayed counters are:
Object Description
• Port
The logical port for the settings contained in the same row.
• Packets
The number of received and transmitted packets per port.
• Bytes
The number of received and transmitted bytes per port.
• Errors
The number of frames received in error and the number of incomplete
transmissions per port.
• Drops
The number of frames discarded due to ingress or egress congestion.
• Filtered
The number of received frames filtered by the forwarding process.
Buttons
: Download the Port Statistics Overview result in EXCEL file.
: Click to refresh the page immediately.
: Clears the counters for all ports.
: Print the Port Statistics Overview result.
Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals.
4.3.1.3 Port Statistics Details
This page provides detailed traffic statistics for a specific switch port. Use the port select box to select which switch port details
to display. The displayed counters are the totals for receive and transmit, the size counters for receive and transmit, and the
