4.6.4 Port Configuration
This section allows the user to inspect and configure the current PoE port settings as Figure 4-6-1-3 shows.
IGS-5225-8P2T2S/IGS-5225-8P4S/IGS-5225-4P2S 802.3at PoE+ Switch – PoE Port Configuration

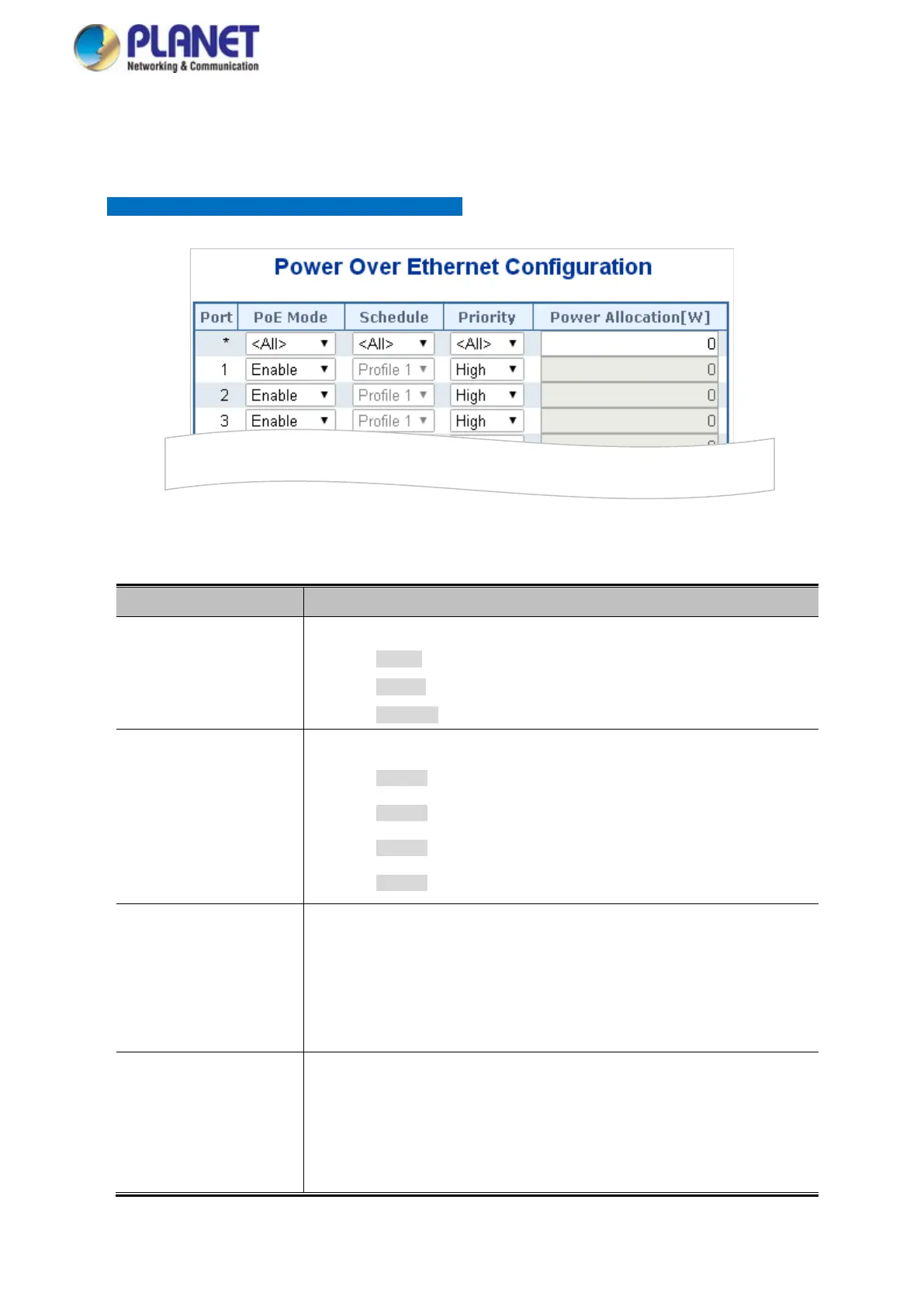

Figure 4-6-1-3: Power over Ethernet Configuration Screenshot
The page includes the following fields:
Object Description
• PoE Mode
There are three modes for PoE mode.
Enable: enable PoE function..
Disable: disable PoE function.
Schedule: enable PoE function in schedule mode.
• Schedule
Indicates the schedule profile mode. Possible profiles are:
Profile1
Profile2
Profile3
Profile4
• Priority
The Priority represents PoE ports priority. There are three levels of power priority
named Low, High and Critical.
The priority is used in case the total power consumption is over the total power
budget. In this case, the port with the lowest priority will be turned off, and power
for the port of higher priority will be offered.
• Power Allocation
It can limit the port PoE supply wattage. Per port maximum value must be less
than 36W watts; total ports values must be less than the Power Reservation
value. Once power overload is detected, the port will automatically shut down
and continue to be in detection mode until Pad’s power consumption is lower
than the power limit value.
