User’s Manual of IGS-5225 series
263
4.3.12 GVRP
GVRP (GARP VLAN Registration Protocol or Generic VLAN Registration Protocol) is a protocol that facilitates control of virtual
local area networks (VLANs) within a larger network
4.3.12.1 GVRP Configuration
This page allows you to configure the global GVRP configuration settings that are commonly applied to all GVRP enabled ports.
as well. as screen in Figure 4-3-12-1 appears.

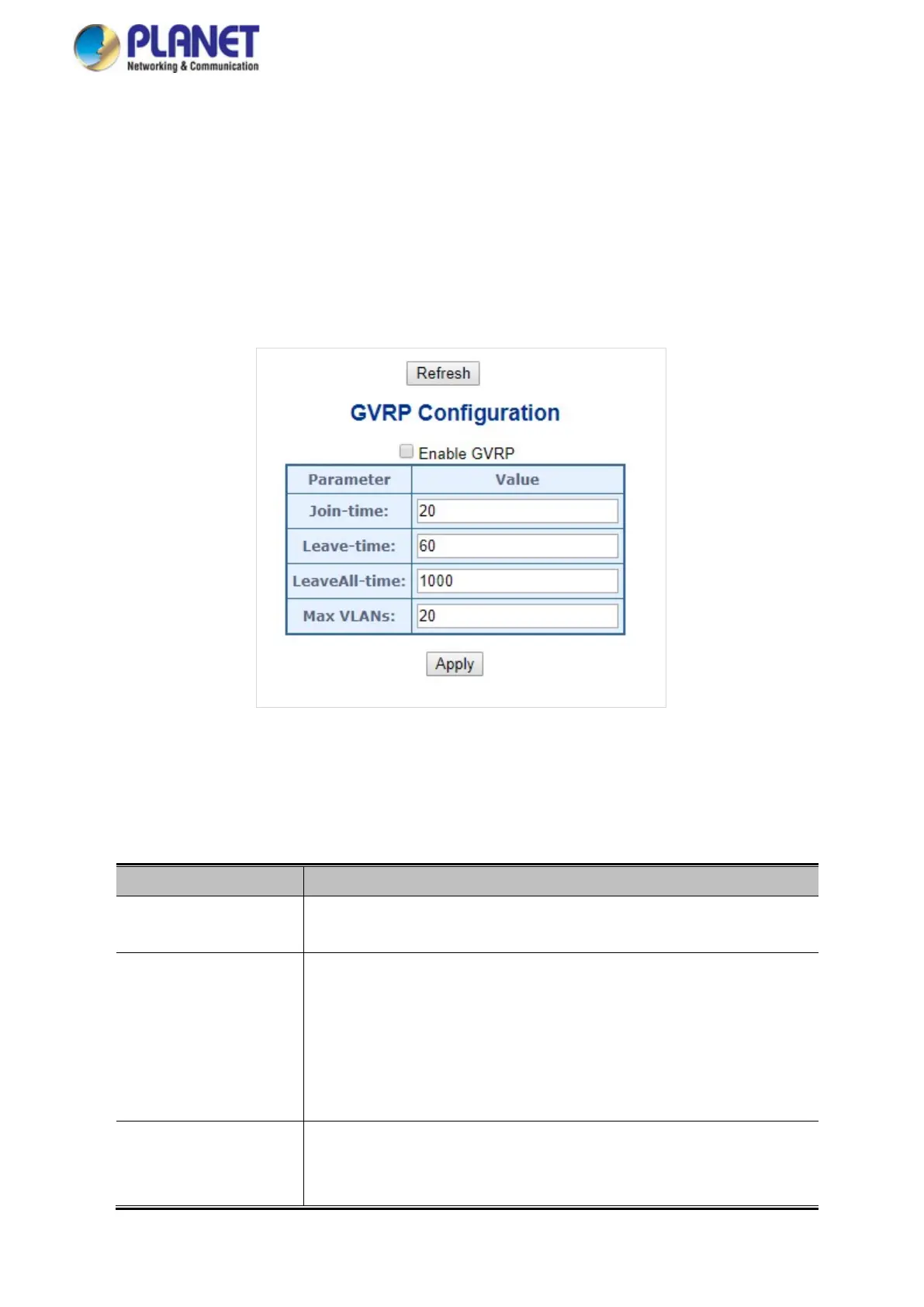

Figure 4-3-12-1: GVRP Configuration Page Screenshot
The page includes the following fields:
General Settings
Object Description
• Enable GVRP globally
The GVRP feature is globally enabled by setting the check mark in the checkbox
named Enable GVRP and pressing the Save button.
• GVRP protocol timers
Join-time is a value in the range of 1-20cs, i.e. in units of one hundredth of a
second. The default value is 20cs.
Leave-time is a value in the range of 60-300cs, i.e. in units of one hundredth of a
second. The default is 60cs.
LeaveAll-time is a value in the range of 1000-5000cs, i.e. in units of one
hundredth of a second. The default is 1000cs
• Max number of VLANs
When GVRP is enabled, a maximum number of VLANs supported by GVRP is
specified. By default this number is 20. This number can only be changed when
GVRP is turned off.
