2.2.2 Wallmount Plate Mounting
To install the Industrial Gigabit Ethernet Switch on the wall, please
follow the instructions described below.
Step 1: To remove the DIN-Rail from the Industrial Gigabit Ethernet
Switch, loosen the screws to remove the DIN-rail.
Step 2: Place the wallmount plate on the rear panel of the Industrial
Gigabit Ethernet Switch.
Step 3: Use the screws to screw the wallmount plate on the
Industrial Gigabit Ethernet Switch.

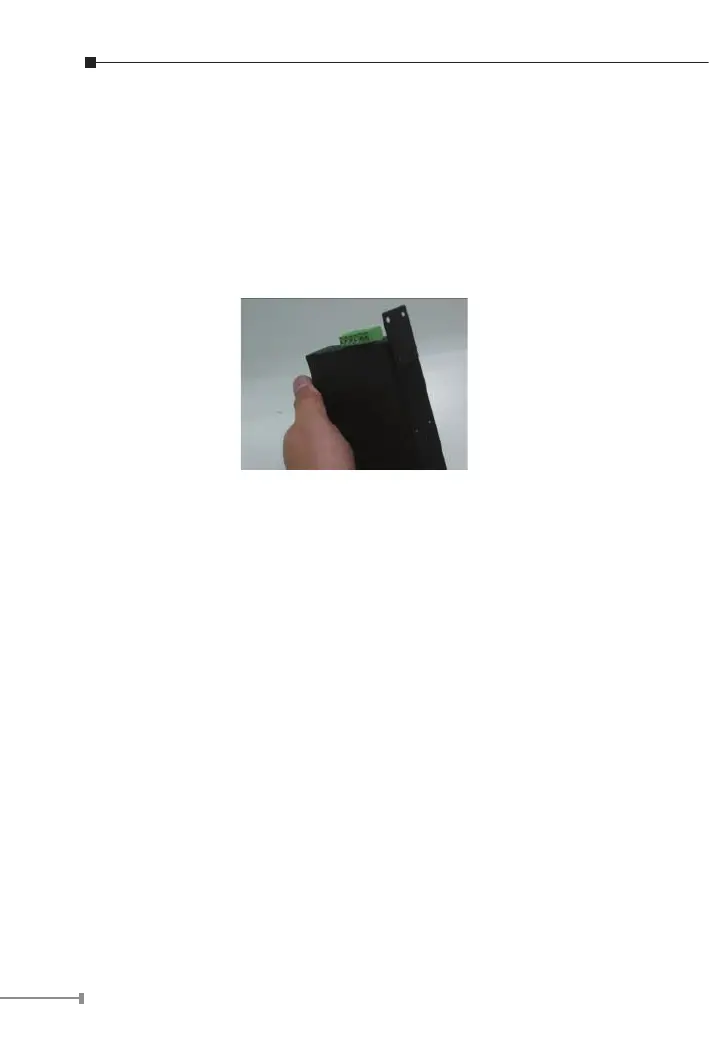

Step 4: Use the hook holes at the corners of the wallmount plate to
hang the Industrial Gigabit Ethernet Switch on the wall.
Step 5: To remove the wallmount plate, reverse the steps above.
