Planet IGS-801T User Manual

11
2.1.1 Product Overview
The PLANET Industrial Gigabit Ethernet Switch with 5/8 RJ-45
10/100/1000Mbps ports for high-speed network connectivity. The
Industrial Gigabit Ethernet Switch can also automatically identify and
determine the correct transmission speed and half / full duplex mode
of the attached devices with its 5/8 ports. The Gigabit port with 9K
jumbo frame feature supported, can handle extremely large amounts of
data transmission in a secure topology linking to a backbone or high-
power servers.
The Industrial Gigabit Ethernet Switch also supports Store-and-Forward
forwarding scheme to ensure low latency and high data integrity,
eliminates unnecessary trafc and relieves congestion on critical
network paths. With an intelligent address recognition algorithm, the
Industrial Gigabit Ethernet Switch could recognize up to 8K different
MAC address and enables ltering and forwarding at full wire speed.
2.1.2 Switch Front Panel

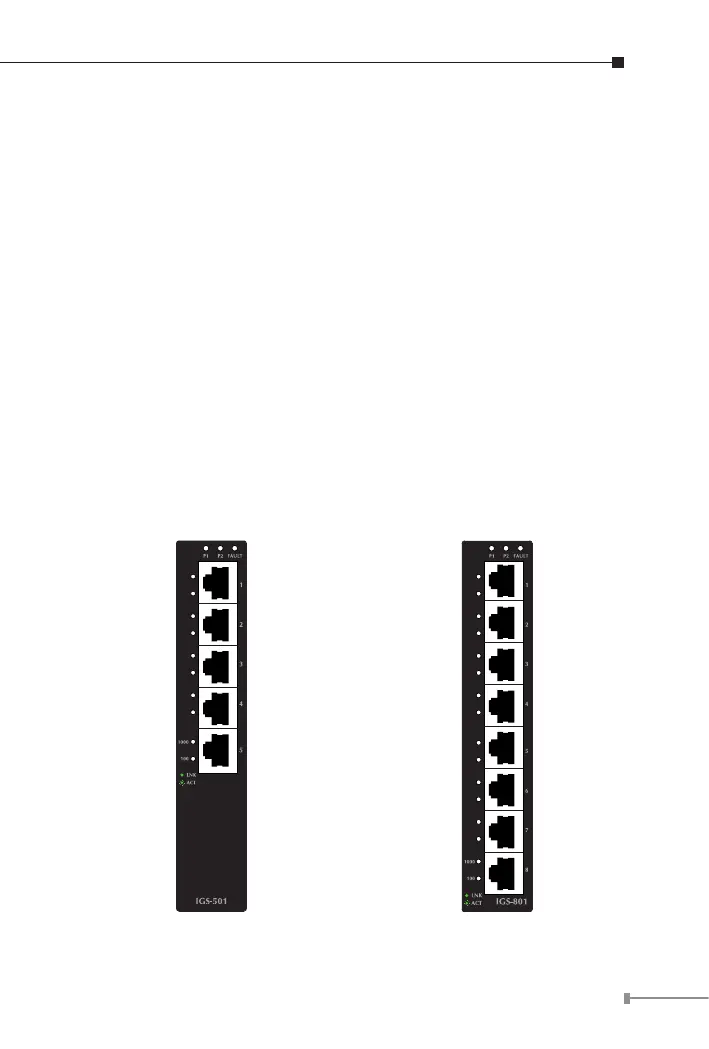

Figure 2-1 & 2-2 & 2-3 & 2-4 shows a front panel of Industrial Gigabit
Ethernet Switch.
Figure 2-1 IGS-501 front panel Figure 2-2 IGS-801 front panel

Planet IGS-801T Specifications

General

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	-
Certification	FCC, CE
Product color	Blue
Rack mounting	No
Housing material	Metal
International Protection (IP) code	IP30
Power consumption (typical)	6.72 W
Heat dissipation	23 BTU/h
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Throughput	11.9 Mpps
Jumbo frames	9000
MAC address table	4000 entries
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	87 mm
Width	32 mm
Height	135 mm
Weight	476 g
