Planet IGS-801T User Manual

15
2.2 Mounting Installation
This section describes how to install the Industrial Gigabit Ethernet
Switch and make connections to it. Please read the following topics and
perform the procedures in the order being presented.

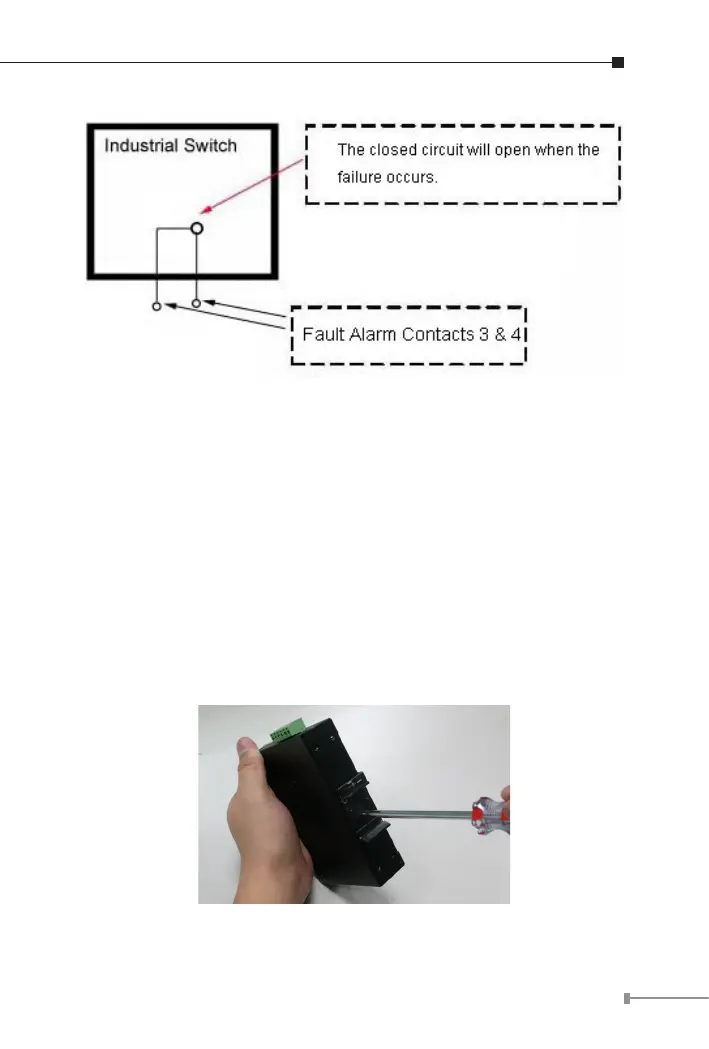

2.2.1 DIN-Rail mounting
The DIN-Rail is screwed on the Industrial Gigabit Ethernet Switch
when out of factory. When need to replace the wall mount application
with DIN-Rail application on Industrail Gigabit Ethernet, please refer
to following gures to screw the DIN-Rail on the Industrial Gigabit
Ethernet Switch. To hang the Industrial Gigabit Ethernet Switch, follow
the below steps:

Planet IGS-801T Specifications

General

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	-
Certification	FCC, CE
Product color	Blue
Rack mounting	No
Housing material	Metal
International Protection (IP) code	IP30
Power consumption (typical)	6.72 W
Heat dissipation	23 BTU/h
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Throughput	11.9 Mpps
Jumbo frames	9000
MAC address table	4000 entries
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	87 mm
Width	32 mm
Height	135 mm
Weight	476 g
