Planet IGS-801T User Manual

12

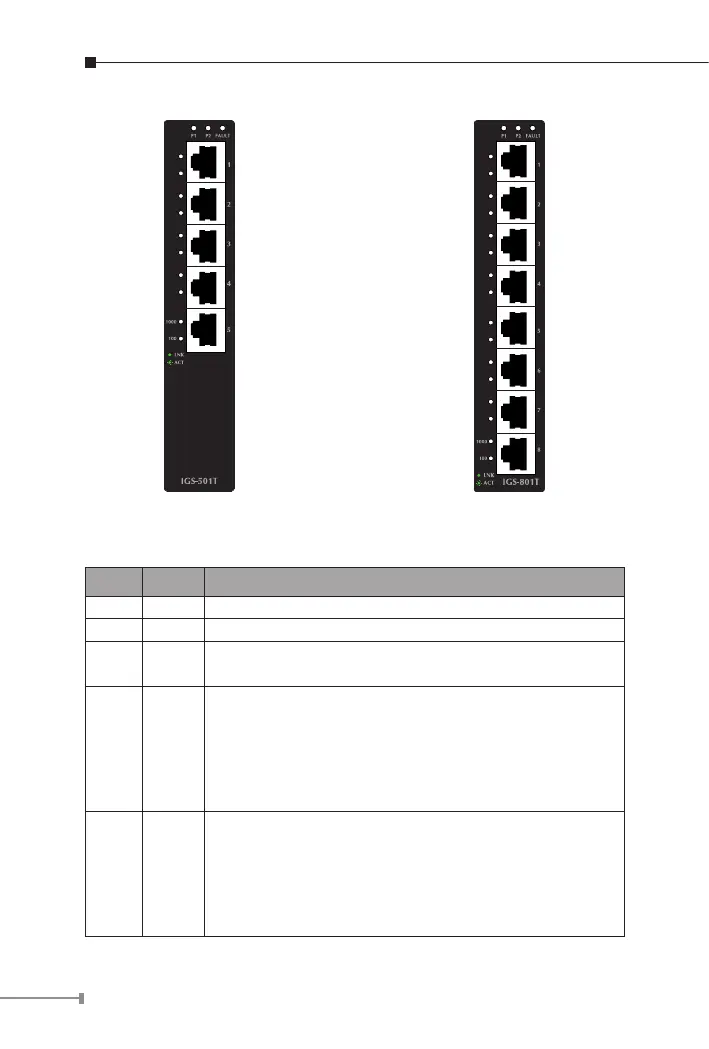

Figure 2-3 IGS-501T front panel Figure 2-4 IGS-801T front panel
2.1.3 LED Indicators
LED Color Function
P1 Green Lit: indicate the power 1 has power.
P2 Green Lit: indicate the power 2 has power.
FAULT Green
Lit: indicate the either power 1 or power 2 has no
power.
1000 Green
Lit: indicate the Switch is successfully connecting to
the network at 1000Mbps.
Off: indicate that the Switch is successfully connecting
to the network at 10Mbps or 100Mbps.
Blink: indicate that the Switch is actively sending or
receiving data over that port.
100 Green
Lit: indicate the Switch is successfully connecting to
the network at 100Mbps or 10Mbps.
Off: indicate that the Switch is successfully connecting
to the network at 1000Mbps.
Blink: indicate that the Switch is actively sending or
receiving data over that port.

Planet IGS-801T Specifications

General

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	-
Certification	FCC, CE
Product color	Blue
Rack mounting	No
Housing material	Metal
International Protection (IP) code	IP30
Power consumption (typical)	6.72 W
Heat dissipation	23 BTU/h
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Throughput	11.9 Mpps
Jumbo frames	9000
MAC address table	4000 entries
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	87 mm
Width	32 mm
Height	135 mm
Weight	476 g
