Planet IGS-801T User Manual

13

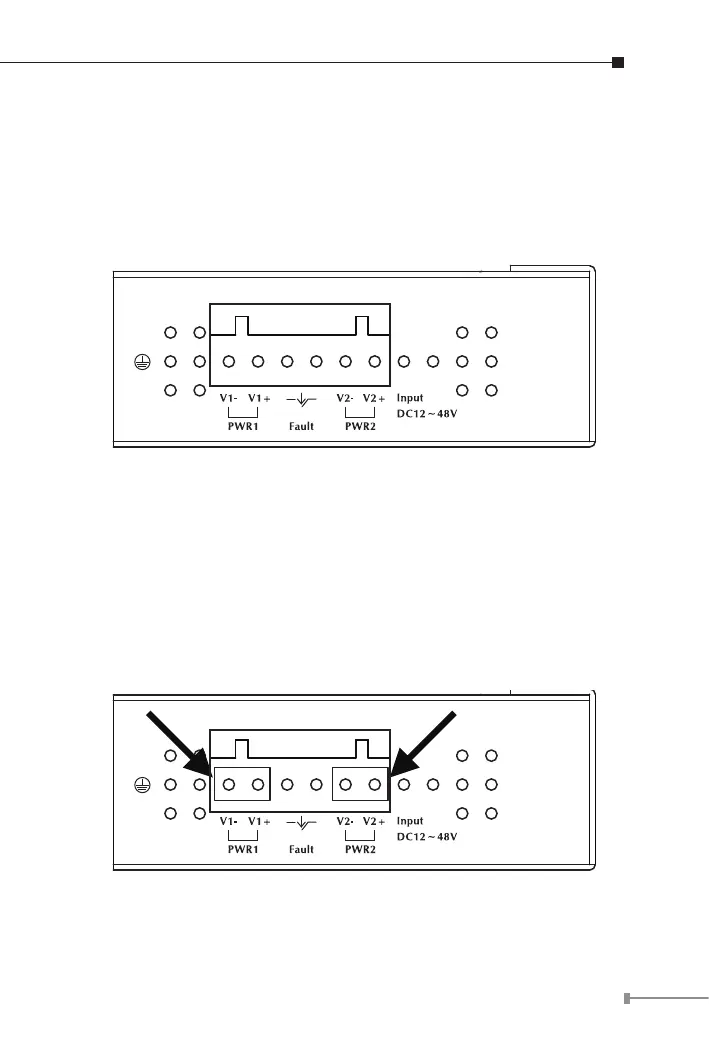

2.1.4 Switch Upper Panel
The upper panel of the Industrial Gigabit Ethernet Switch consist one
terminal block connector within two DC power inputs. Figure 2-5 shows
the upper panel of the switch.
Figure 2-5 shows upper panel of Industrial Gigabit Ethernet Switch.
Figure 2-5 Industrial Gigabit Ethernet Switch upper Panel.
2.1.5 Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of Industrial
Gigabit Ethernet Switch is used for two DC redundant powers input.
Please follow the steps below to insert the power wire.
1. Insert positive / negative DC power wires into the contacts 1 and 2
for POWER 1, or 5 and 6 for POWER 2.
V1- V1 + V2 - V2 +

Planet IGS-801T Specifications

General

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	-
Certification	FCC, CE
Product color	Blue
Rack mounting	No
Housing material	Metal
International Protection (IP) code	IP30
Power consumption (typical)	6.72 W
Heat dissipation	23 BTU/h
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Throughput	11.9 Mpps
Jumbo frames	9000
MAC address table	4000 entries
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	87 mm
Width	32 mm
Height	135 mm
Weight	476 g
