Planet VC-234G User Manual
4
of 1
of 1 rating
32 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
31
RJ45
UTP Cable
RJ11
VC-231G Switch Bottom Side
Ethernet o
ver VDSL
2
Conver
ter
5V DC
CO
CPE
G.INP
Interleave
8dB
12dB
OFF
ON
Mode
Tran.
Sym.
Asym.
Band
SNR
1
2
3
4
ON
Ø7mm
Ø2mm
RJ45
UTP
Cable
L
A
N
4
3
2
1
10/
100/
1000T
V
D
S
L
P
h
o
n
e
5
V D
C
C
O
G
.
I
N
P
A
s
y
m
.
1
2
d
B
C
P
E
I
n
t
e
r
S
y
m
.
8
d
B
O
N
O
F
F
VC-234G Switch Bottom Side
90mm
Ø7mm
Ø2mm
RJ45
UTP Cable
LAN
4
3
2
1
10/100/1000T
VDSL
Phone
5V DC
CO
G.INP
Asym.
12dB
CPE
Inter
Sym.
8dB
ON
OFF
VC-234G Switch Bottom Side
90mm
Ø7mm
Ø2mm
30
32
Table of Contents
Default Chapter
4
Table of Contents
4
1 Package Contents
5
2 Product Features
6
3 Hardware Introduction
8
Front Panel and LED Indicators
8
Rear Panel and Mode DIP Switch
11
Power Information
15
4 Connecting and Using the VDSL2 Bridge
16
Point-To-Point Application--LAN to LAN Connection
18
Point-To-Multipoint Application--Connect to IP DSLAM
19
Power Source
20
5 Product Specifications
22
6 Performace Table
24
7 Troubleshooting
26
8 Faq
27
9 Customer Support
29

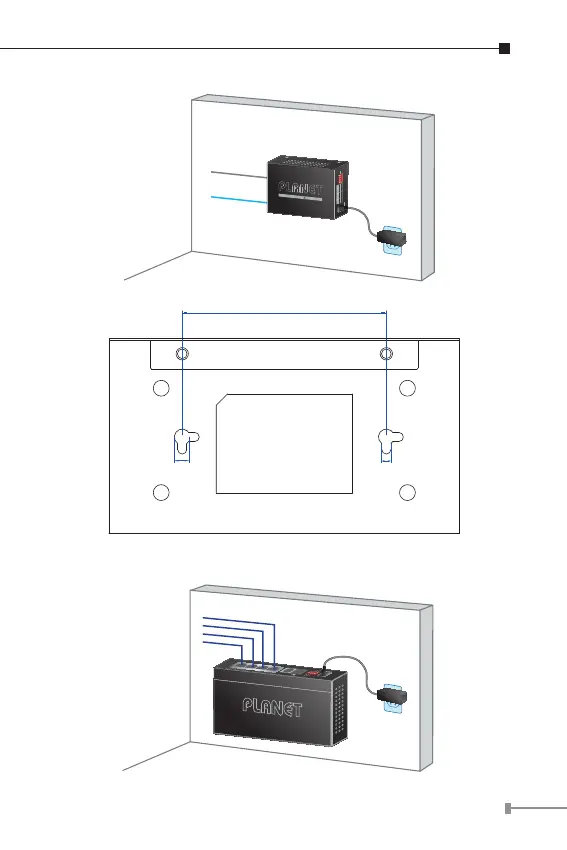

Appendix: Wall-Mount and Chassis Installation
30
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Planet VC-234G and is the answer not in the manual?
Ask a question
