11
100 Green
Lit
Indicates that the port is operating at
100Mbps or 10Mbps.
Blink
Indicates that the VDSL2 Bridge is
actively sending or receiving data over
that port at 100Mbps or 10Mbps.
Off
Indicates that the port is link down or
10Mbps.

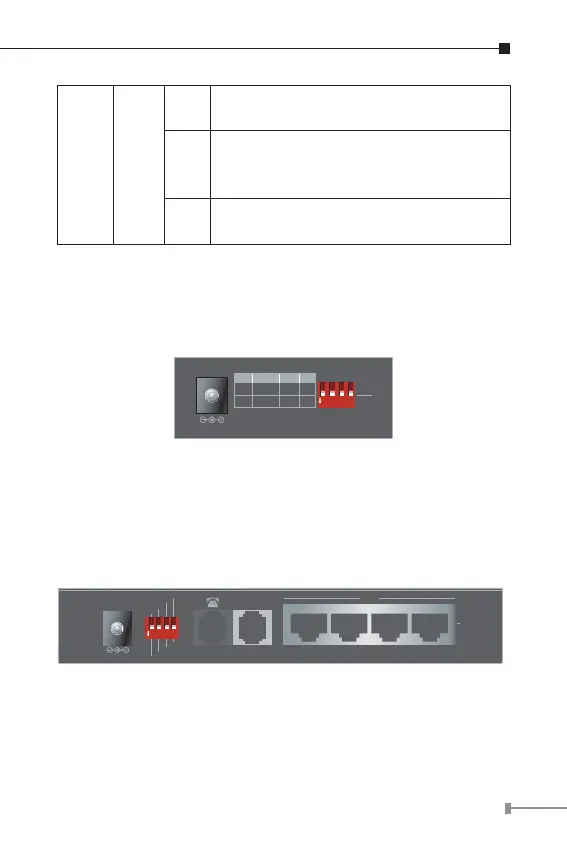

3.2 Rear Panel and Mode DIP Switch
VC-231G Rear Panel
5V DC
CO
CPE
G.INP
Interleave 8dB
12dB
OFF
ON
Mode Tran.
Sym.
Asym.
Band SNR
1
2
3
4
ON
Figure 3-2-1: VC-231G Rear Panel
¾ DIP switch
¾ DC jack (DC input) for power adapter
VC-234G Rear Panel
LAN
4 3 2 1
10/100/1000T
VDSLPhone
5V DC
CO
G.INP
Asym.
12dB
CPE
Inter
Sym.
8dB
ON
OFF
1
2
3
4
ON
Figure 3-2-2: VC-234G Rear Panel
¾ Four 10/100/1000BASE-T RJ45 connectors for Ethernet
¾ One RJ11 connector for VDSL2; connect to IP DSLAM or
another VDSL2 Bridge
