20

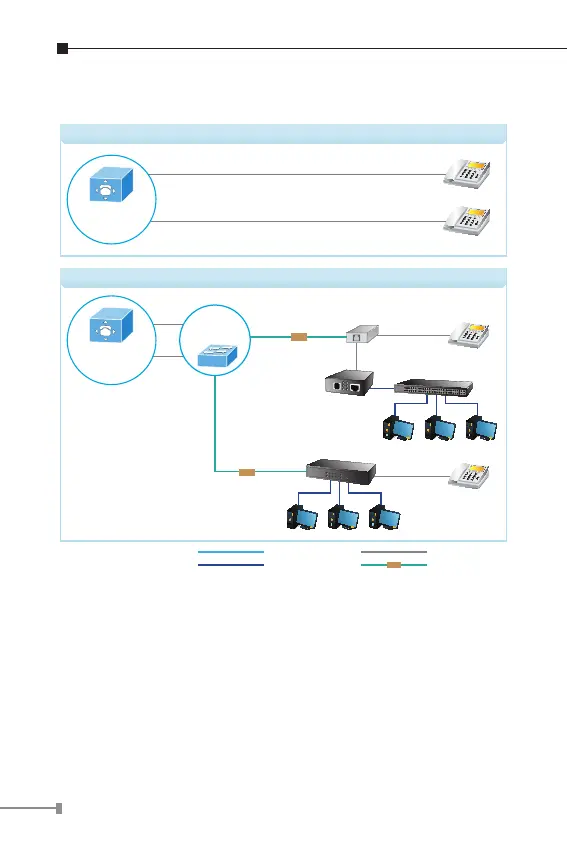

Multi-LAN Connection
Phone
Phone
Switch
Phone
Telephone wire
Telephone wire
Ethernet Telephone Network
UP to 1.4km
VDSL2
VDSL2
VC-231G
Splitter
Phone
Telephone wire
Ethernet over VDSL2 and Telephone Network
Main office/PBX,
Telco CO,
Wire Closet
Main office/PBX,
Telco CO,
Wire Closet
VDSL2 Switch
(Multi-port CO)
VC-234G
100BASE-TX UTP
1000BASE-T UTP
VDSL2
VDSL2
Telephone wire
Refer to the following procedure to set up the VC-234G/
VC-231G to IP DSLAM connection.
1. [Remote End] Set the remote IP DSLAM/VDSL2 switch to
CO mode with proper VDSL2 prole.
2. [Local End] Set the VC-234G/VC-231G at the local end to
CPE mode from the DIP switch
3. Power on the VC-234G/VC-231G CPEs by connecting its
power source.
To Next Page
