Appendix: Wall-mount and Chassis
Installation
This part describes how to install your VDSL2 Bridge and make
connections to it.
Please read the following topics and perform the procedures in
the order being presented.

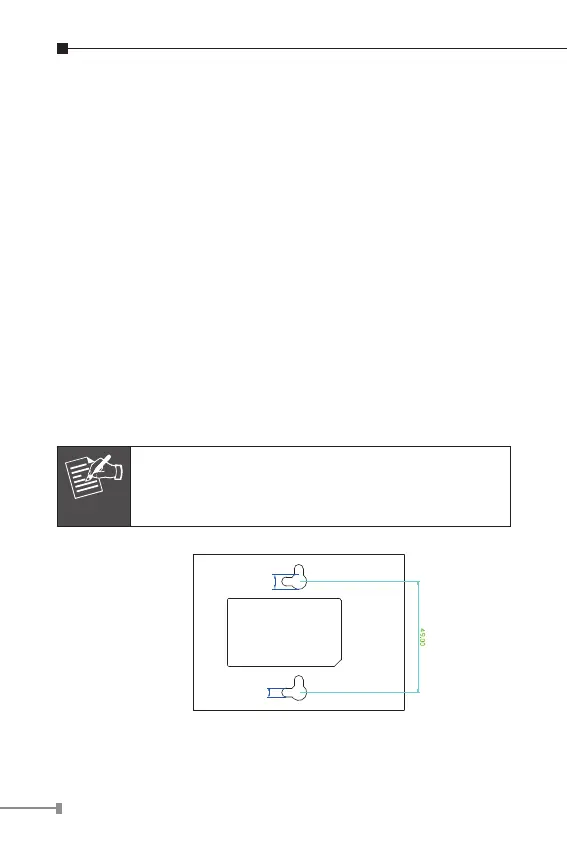

Wall-mount Installation
Step 1: Please nd the wall that can mount the VC-234G/
VC-231G
Step 2: Screw two screws on the wall.
Step 3: Hang the VC-234G/VC-231G on the screws from the
wall.
Step 4: Repeat Step 5 of Desktop Installation for power supply
to the VC-234G/VC-231G
Note
Before mounting the device to the wall, please
check the location of the electrical outlet and the
length of the Ethernet cable.
VC-231G Switch Bottom Side
Ethernet over VDSL 2 Converter
5V DC
CO
CPE
G.INP
Interleave 8dB
12dB
OFF
ON
Mode Tran.
Sym.
Asym.
Band SNR
1
2
3
4
ON
Ø7mm
Ø2mm
