8
3. Hardware Introduction
3.1 Front Panel and LED Indicators

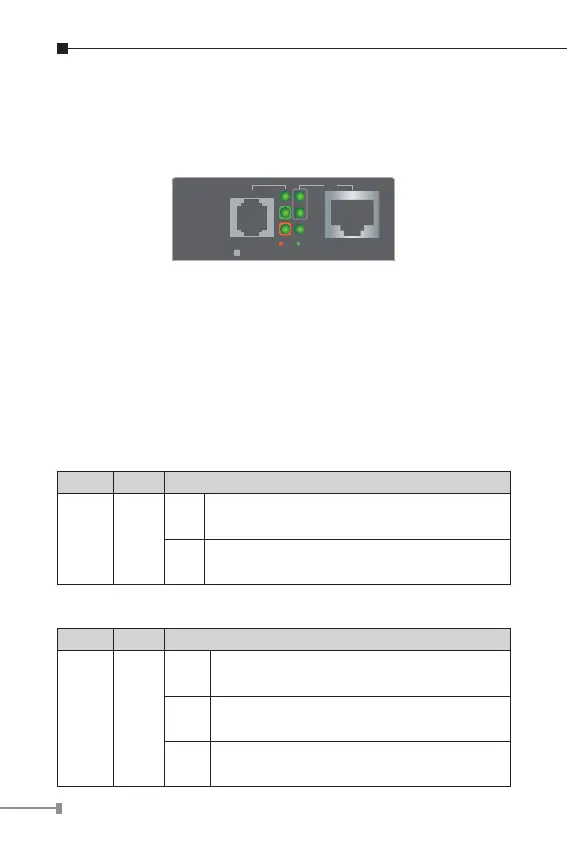

VC-231G Front Panel
Ethernet over VDSL 2 Converter
VC-231G
PWR
VDSL
TP
1000
100
CPE
CO
10/100/1000
Figure 3-1-1: VC-231G Front Panel
¾ 10/100/1000BASE-T RJ45 connector for Ethernet
¾ RJ11 connector for VDSL2; connect to IP DSLAM or another
VDSL2 Bridge
¾ LEDs for power, Ethernet and VDSL
VC-231G LED Indicators
System
LED Color Function
PWR Green
Lit
Indicates that the VDSL2 Bridge has
power.
Off
Indicates that the VDSL2 Bridge has no
power.
VDSL
LED Color Function
VDSL Green
Lit
Indicates that the VDSL link is
established.
Fast
Blink
Indicates that the VDSL link is at training
status (about 10 seconds).
Slow
Blink
Indicates that the VDSL link is at idle
status.
