BITE-WING EXPOSURE
34 Planmeca Intra X-ray Unit
User’s Manual

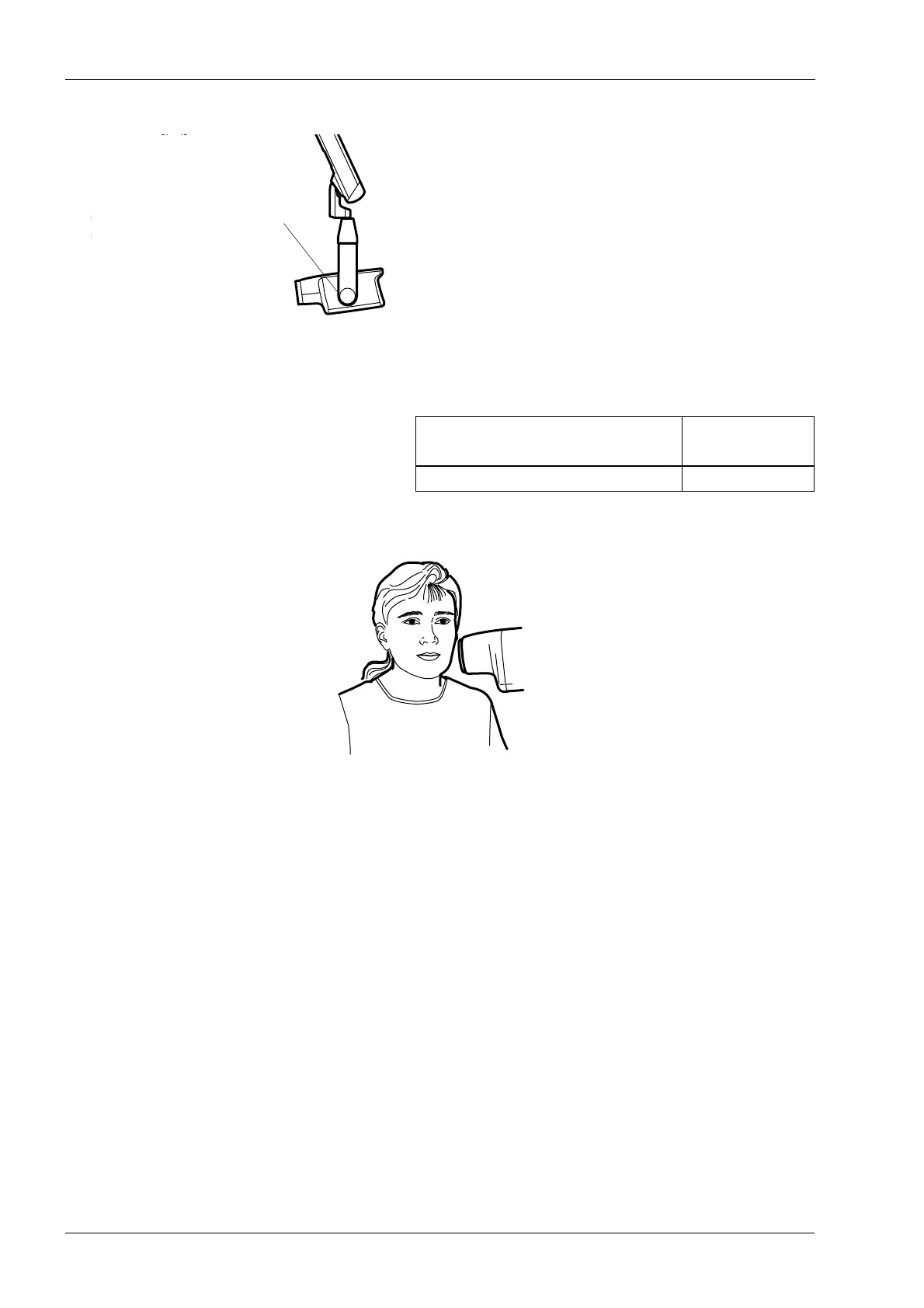

Positioning the cone
The angle of the cone is indicated on the scale located on
the vertical joint of the tube head.
The optional long cone can be attached into the short
cone. Refer to chapter 5.2 “Selecting the cone” on page 8.
Select the cone angle from the table below.
Position the cone according to the figure below.
TEETH
ANGLE OF
INCLINATION
Bite-wing exposure 5°
Scale for the cone angle
Bite-wing
