CONTROL PANEL
12 Planmeca Intra X-ray Unit
User’s Manual

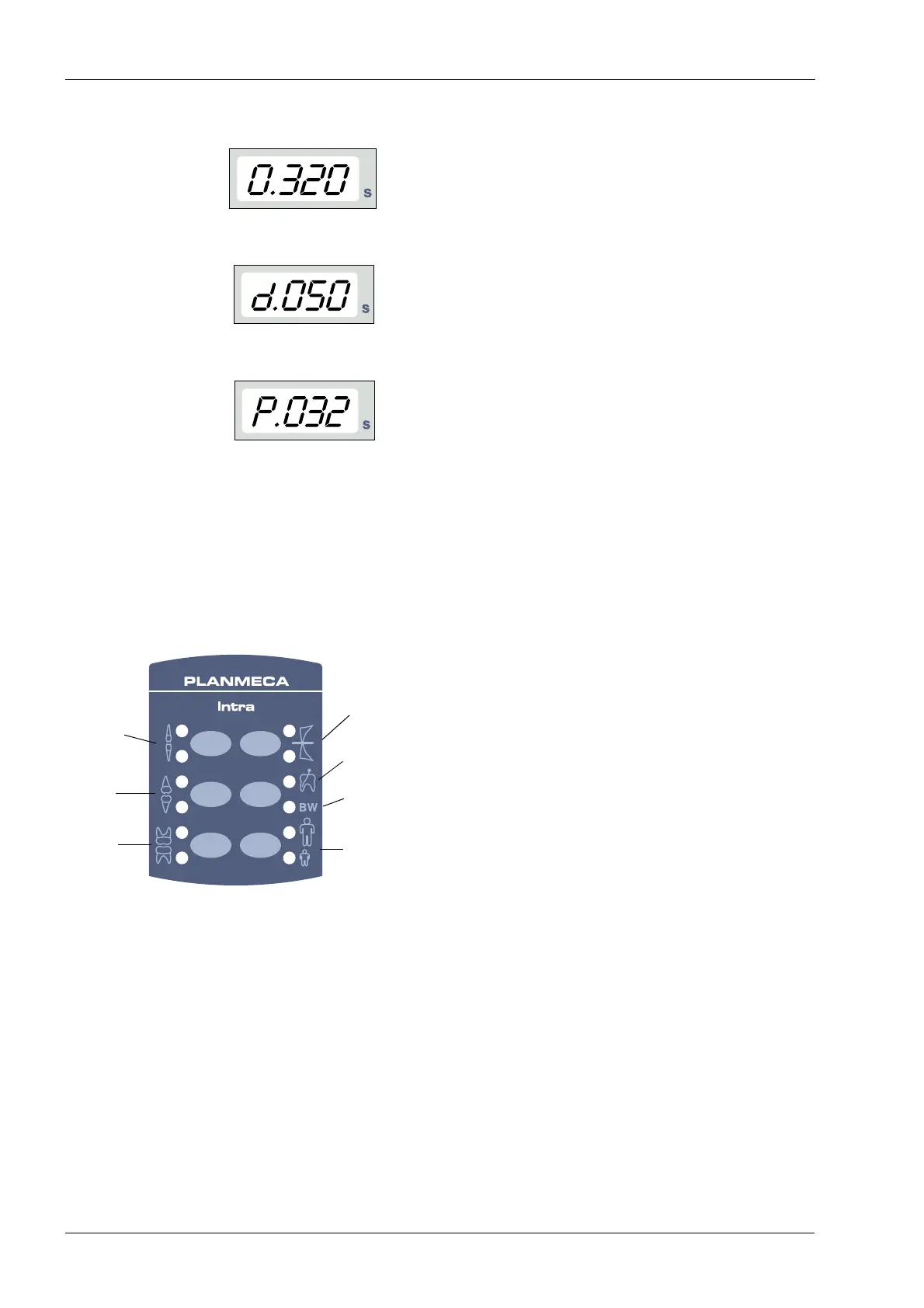

Time display
The selected exposure time is shown on the time display.
After taking an exposure a waiting time starts to flash on
the time display which indicates the delay before the next
exposure can be taken.
In the digital imaging mode the exposure time is shown
with the prefix “d.”
In the phosphoric mode the exposure time is shown with
the prefix “P.”.
6.2 Keys and indicator lights
Preprogrammed setting keys and indicator lights
The unit is preprogrammed with exposure parameters -
time, kV and mA values - which can be selected by
pressing these keys. There are ten sets of parameters for
both the child mode and the adult mode: one for each
exposure region and one for default exposure values,
which are in use when an exposure region is not
selected.
The selections that can be made are:
molars, premolars &
canines, incisors, occlusal exposure, endodontic and bite-
wing
.
Press the desired key once to select the projection of the
maxilla. The indicator light of the selected projection will
come on.
Press the key twice to select the projection of the
mandible. The indicator light of the selected projection will
come on.
Pressing the key a third time will recall the default
exposure values.
The preprogrammed settings can be changed by the user,
see section 14 “PROGRAMMING THE EXPOSURE
VALUES” on page 39.
Film-based
imaging mode
Digital imaging
mode
Phosphoric
mode
Incisors
Premolars
and
canines
Molars
Occlusal
exposure
Adult/
child
mode
selection
Endo-
dontic
Bite-wing

Planmeca intra Specifications

General

Manufacturer	Planmeca
Model	Planmeca Intra
Frequency	50/60 Hz
Tube Voltage	60-70 kV
Tube Current	7 mA
Type	Dental X-ray Unit
Voltage	100-240 V
Weight	Varies depending on configuration; refer to specific model documentation
