Plexxi Switch 2e - Network With Switch 2 Pod Models

!
+$! Plexxi Switch 2e Hardware and Installation Guide! !
@)3O.5W!O73A!?O73/A!'!H.R!^.R)E6!
You can create a network topology that includes Switch 2e, Switch 2p and Switch 2sp when they are
attached to a PSI. The optics used in the QSFP slots that create the LightRail use 1310nm waves, which
makes Switch 2e LightRail compatible with these two pod versions of Plexxi Switches (Switch 2p, 2sp).

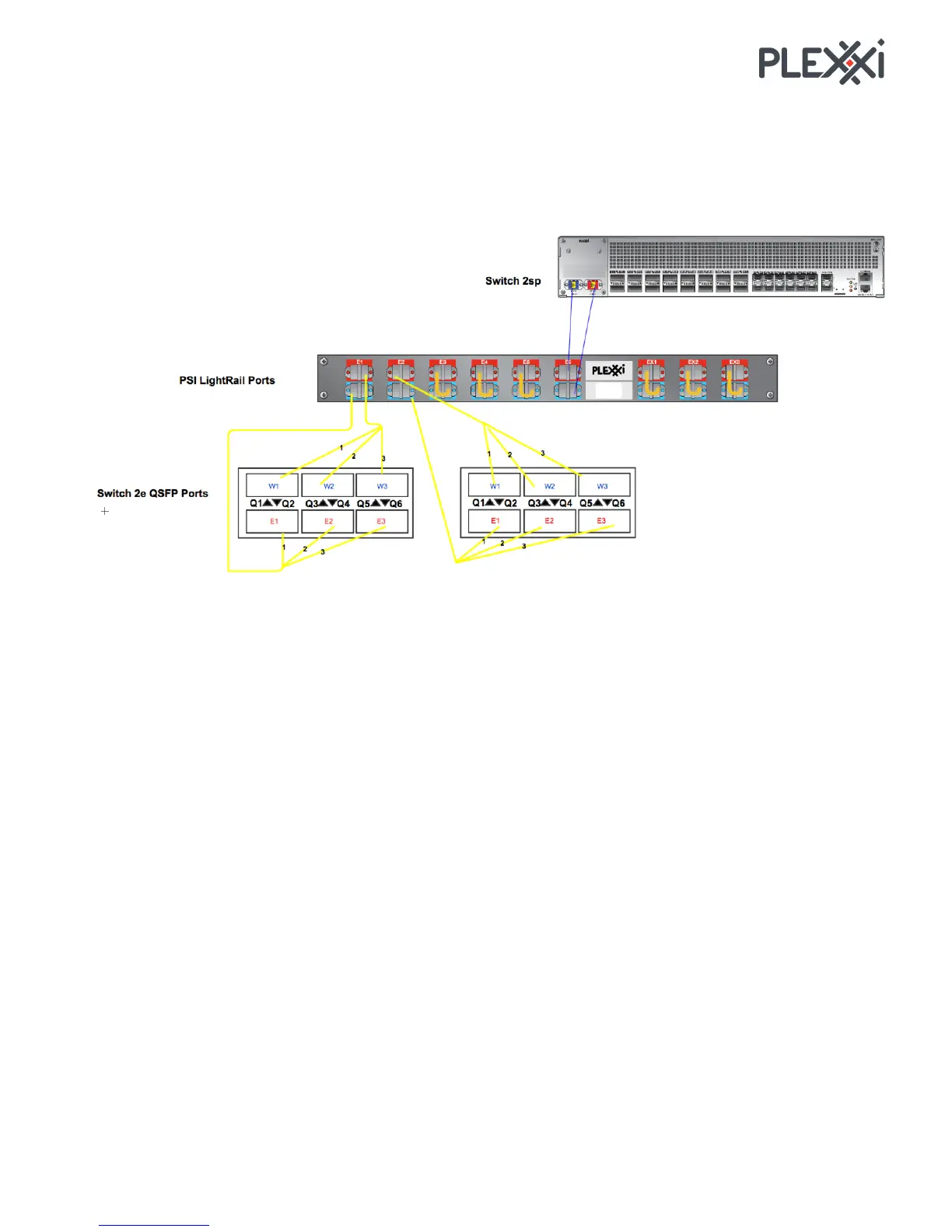

The following illustration shows a network topology that includes two Plexxi 2e switches and a Plexxi
Switch 2sp connected to Plexxi PSI Interconnect device. As shown, all unused ports are looped back.
